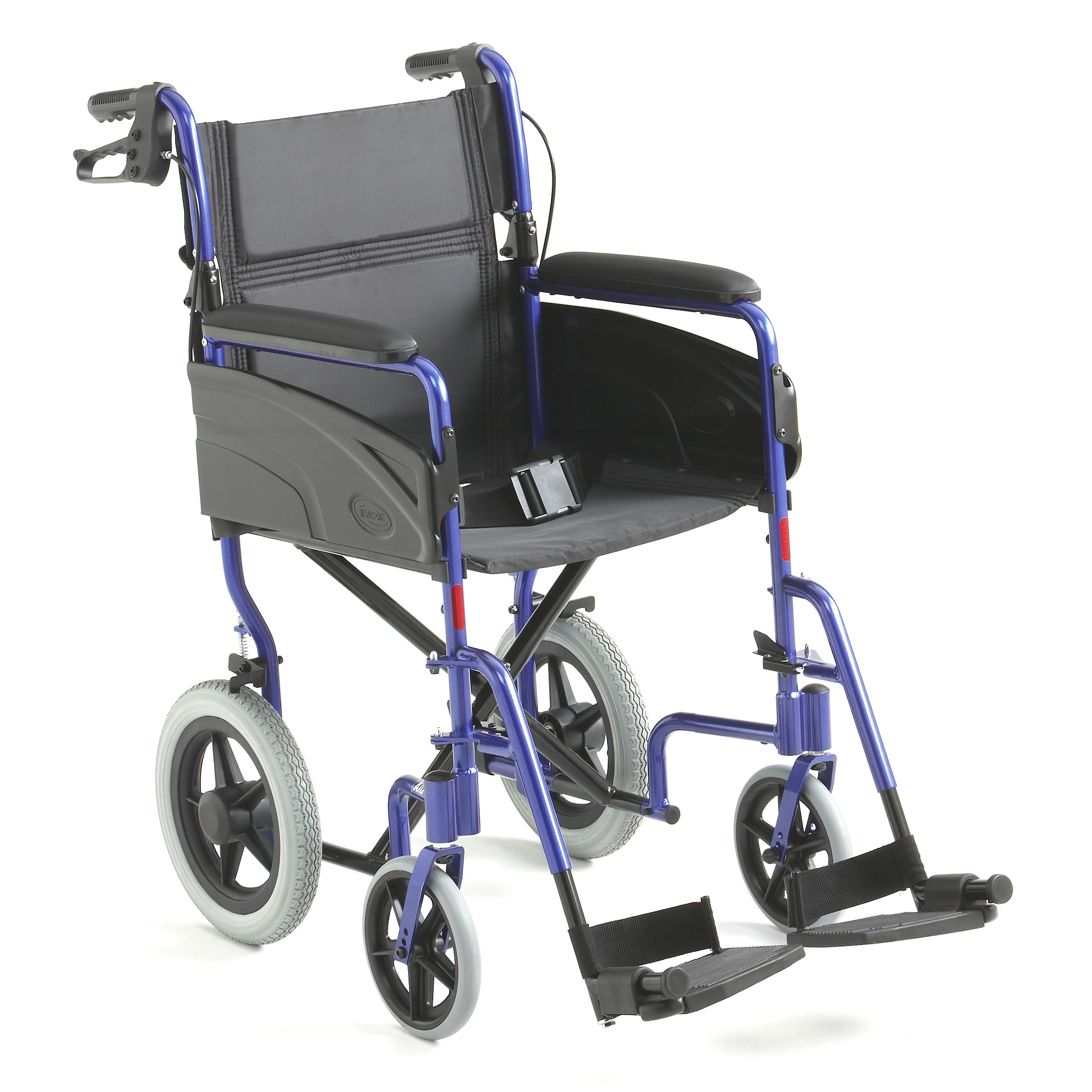

Discontinued product Discontinued product

This product is no longer available.  For an alternative wheelchair, please see the Action 1R manual chair.

Folding backrest
Folding backrest
Reduces overall size when folded for transportation or storage.
Swing away footrest
Swing away footrest
Footplates fold up as shown and footrests swing away, allowing easier access in or out of the chair.
Foldable cross frame
Foldable cross frame
Lightweight frame folds flat for easier portability.
Find a retailer
Units: Kilometers
Address, City, Zip-Code, Country, ...
Geocodes origin from free text input, with Autocomplete option.

Leave us a message

Please complete the details below to contact us.

By submitting my information, I acknowledge that I have read and understand Invacare's privacy notice.
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

405 / 455 mm

Seat depth

Seat depth

430 mm

Seat angle

Seat angle

Seat height

Seat height

490 mm

Backrest angle

Backrest angle

Backrest height

Backrest height

450 mm

Front frame angle

Front frame angle

80°

Length of footrests

Length of footrests

340 - 460 mm

Armrest height

Armrest height

230 mm

Driving unit width

Driving unit width

Seat width + 110 mm

Total width folded

Total width folded

290 mm

Total height folded

Total height folded

760 mm

Total length

Total length

985 - 1030 mm

Total length without footrests

Total length without footrests

760 mm

Total height

Total height

945 mm

Max. safe slope

Max. safe slope

Turning diameter

Turning diameter

880 mm

Max. User weight

Max. User weight

100 kg

Total weight

Total weight

12 kg

The heaviest part

The heaviest part

10.2 kg

Frame colour

Frame colour

Blue

Colour (other)

Colour (other)

Black nylon

User Manual (1)
Service Manual (1)
Test & Certificates (2)
