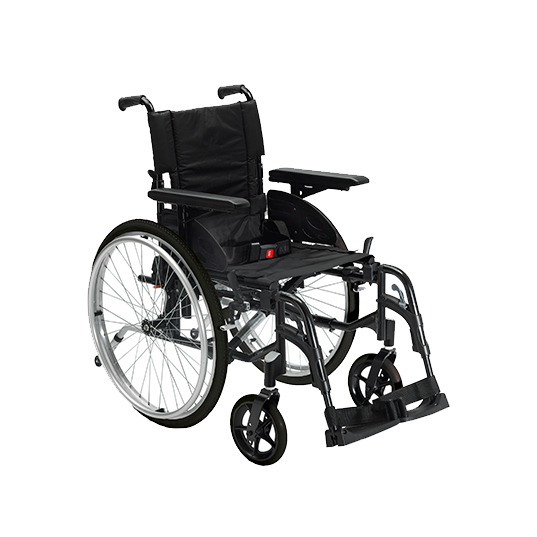

Invacare Action 2 NG manual wheelchair

Manual wheelchair Invacare Action 2 NG
Manual wheelchair Invacare Action 2 NG grey frame

The Action 2NG
specifications meet the needs of clients refusing to compromise on safety or
comfort. The next generation Action 2NG offers a low total weight for easy
folding, handling and transportation, combined with good driving abilities.

Manual wheelchair Invacare Action 2 NG grey frame
Manual wheelchair Invacare Action 2 NG backrest
Manual wheelchair Invacare Action 2 NG
Manual wheelchair Invacare Action 2 NG grey frame
Manual wheelchair Invacare Action 2 NG backrest
Manual wheelchair Invacare Action 2 NG
Manual wheelchair Invacare Action 2 NG grey frame
Manual wheelchair Invacare Action 2 NG backrest
Manual wheelchair Invacare Action 2 NG
Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Search for your nearest Invacare Retailer by completing the fields below.

Leave us a message

Please complete the details below to contact us.

Specifications & Downloads

Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Seat width

Seat width

380 / 405 / 430 / 455 / 480 mm

Seat depth

Seat depth

400 / 430 mm

Seat angle

Seat angle

Seat height

Seat height

Self propel 460 / 485 / 510 mm / Transit 485 / 510 mm

Backrest angle

Backrest angle

7° / 0° - 30°

Backrest height

Backrest height

430 mm

Front frame angle

Front frame angle

80° / 0° - 80°

Length of footrests

Length of footrests

330 / 460 mm

Armrest height

Armrest height

200 - 280 mm (n°1) / 240 mm (n°2)

Driving unit width

Driving unit width

Self propel Seat width + 200 mm / Transit Seat width + 145 mm

Total width folded

Total width folded

Self propel 325 mm / Transit 240 mm

Total height folded

Total height folded

935 mm

Total length

Total length

Self propel 1030 - 1080 mm / Transit

Total length without footrests

Total length without footrests

Self propel 820 / 870 mm / Transit 725 mm

Total height

Total height

Self prople 920 / 945 / 970 mm / Transit 945 / 970 mm

Max. safe slope

Max. safe slope

Turning diameter

Turning diameter

790 mm

Max. User weight

Max. User weight

125 kg

Total weight

Total weight

Self prople 16.2 kg / Transit 14.kg

Transport weight

Transport weight

Self propel 8.9 kg / Transit 12.1kg

Crash tested

Crash tested

Frame colour

Frame colour

Anthracite Black

Colour (other)

Colour (other)

Upholstery: Black Nylon
