Invacare Action 1R manual wheelchair

The Invacare Action 1R is a dependable, entry-level manual wheelchair designed for everyday use—without compromising on functionality or comfort. Backed by decades of experience in wheelchair design, it’s ideal for clients who need a straightforward, ready-to-go mobility solution. Action 1R is part of our highly established Action range of wheelchairs


Action 1R Self propel
Action 1R Self propel
Action 1R Self propel

Available in two configurations:

  • Self-propel model with 24” spoked rear wheels and lightweight aluminium handrims

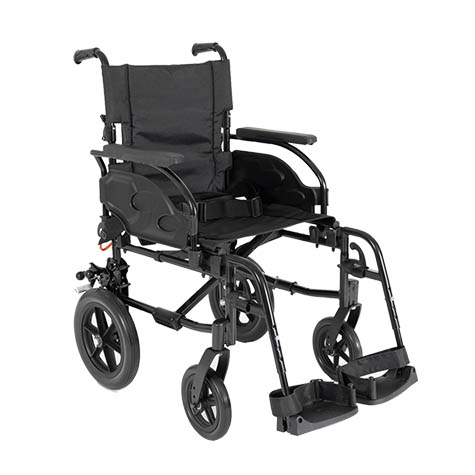

  • Transit model with compact 12” rear wheels for easier transportation and carer-assisted mobility

With six standard seat width options and a user-friendly design, the Action 1R can be quickly issued and easily adjusted to meet individual needs.  It also features an optional elevating legrest for individuals requiring additional support and comfort
Key Features

  • Choice of self-propel or transit models

  • Swing-away armrests for easier side transfers

  • Adjustable arm pads with two positioning options for personalised comfort

  • Push-to-lock brakes for added safety

  • Easy-release swing-away footrests for convenience

  • Folds easily for storage or transport

  • Six standard seat sizes for a better fit

    • Optional Anti Tippers for extra safety on slopes
    • Optional Elevating legrests for additional comfort and support
  • Cross compatible of parts with the Action range

Whether for short-term or longer-term use, the Action 1R offers a practical, comfortable, and efficient solution for basic mobility needs.

Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Leave us a message

Please complete the details below to contact us.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Seat width

Seat width

380, 405, 430, 455, 480, 505mm

Seat depth

Seat depth

400 - 430mm

Seat angle

Seat angle

3 degrees

Seat height

Seat height

495mm

Backrest angle

Backrest angle

0 / 7 degrees

Backrest height

Backrest height

430mm

Front frame angle

Front frame angle

70 degrees

Length of footrests

Length of footrests

330 - 455mm

Armrest height

Armrest height

240mm

Driving unit width

Driving unit width

Self propel version:  608 - 700mm (seat width +195mm)

Transit version:  578 - 670mm (seat width +160mm)

Total width folded

Total width folded

Self propel version:  250mm

Transit version:  260mm

Total length inc. footrests

Total length inc. footrests

Self propel version:  1085 - 1125mm

Transit version:  955mm

Total length without footrests

Total length without footrests

835 - 875mm

Total height

Total height

995mm

Max. safe slope

Max. safe slope

Max. slope parking brake: 7°

Static stability downhill: 18°

Static stability uphill: 9°

Static stability sideways: 19°

Max. User weight

Max. User weight

125kg

Total weight

Total weight

From 17.5kg

The heaviest part

The heaviest part

From 10.2kg

Crash tested

Crash tested

Frame colour

Frame colour

Anthracite Black

Frame colour

Comment

1. Stability Values

Max. slope parking brake: 7°

Static stability downhill: 18°

Static stability uphill: 9°

Static stability sideways: 19°


2. Radius

Mini turning radius: 915 mm

Pivot width: 1280 mm


3. Folded Dimensions

Folded height: 735 - 950 mm

Folded depth: 1025 mm

Folded width: 250 mm


4. Overall dimensions

In some configurations, overall width or

length exceed the authorised limits, access to

emergency escape routes is not possible
