Manual wheelchair Invacare Action 3 NG

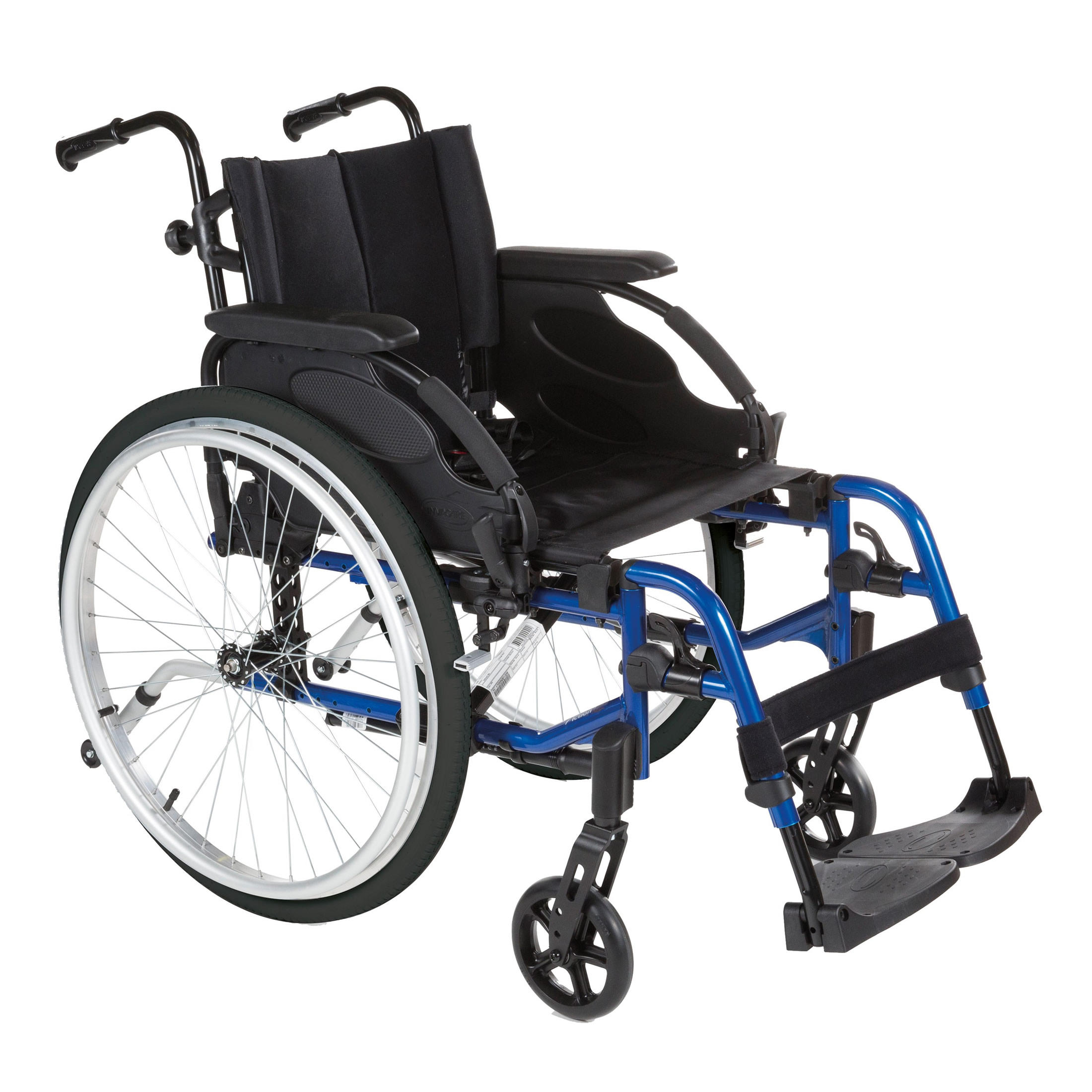

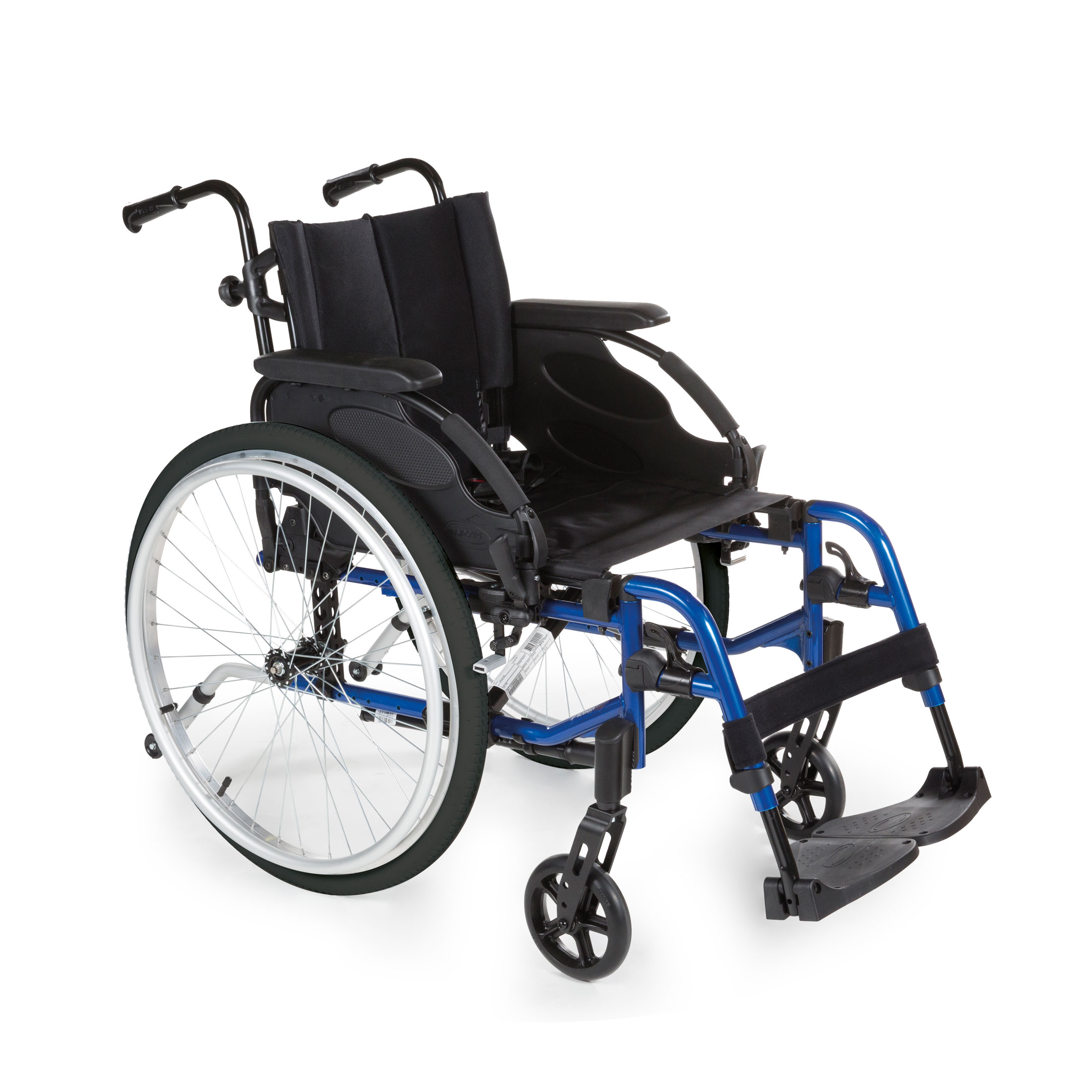

Manual wheelchair Invacare Action 3 NG blue frame

The Invacare Action 3NG manual wheelchair is a sleek and stylish chair for everyday use. A highly versatile design enabling the wheelchair to be as modified as you need according to your functional and clinical requirements.

Manual wheelchair Invacare Action 3 NG blue frame
Manual wheelchair Invacare Action 3 NG blue frame
Manual wheelchair Invacare Action 3 NG with transparent tray
Manual wheelchair Invacare Action 3 NG reclining backrest
Manual wheelchair Invacare Action 3 NG transit version
Manual wheelchair Invacare Action 3 NG
Manual wheelchair Invacare Action 3 NG blue frame
Manual wheelchair Invacare Action 3 NG blue frame
Manual wheelchair Invacare Action 3 NG with transparent tray
Manual wheelchair Invacare Action 3 NG reclining backrest
Manual wheelchair Invacare Action 3 NG transit version
Manual wheelchair Invacare Action 3 NG
Manual wheelchair Invacare Action 3 NG blue frame
Manual wheelchair Invacare Action 3 NG blue frame
Manual wheelchair Invacare Action 3 NG with transparent tray
Manual wheelchair Invacare Action 3 NG reclining backrest
Manual wheelchair Invacare Action 3 NG transit version
Manual wheelchair Invacare Action 3 NG

With a vast range of options and accessories available that are both quick and easy to reconfigure, the Action 3NG can easily be transformed from a more active set up to a more supportive set up if required. The perfect model for refurbishment and re-issuing with its cross compatible options and accessories that can be seen across the Action family and other Invacare product categories - Power Mobility, Rea Family, Active, Seating and Positioning and Alber.

Ideal for use at home or outdoors with great manoeuvrability from its multiple rear wheel positions and outstanding drive performance from its lightweight aluminum frame and new lightweight options. Making this manual chair easy to store and transport.

This versatile model can also be customised according to your personal taste with a choice of 8 vibrant frame colours. In combination with the sleek and modern black features that now come as standard across the Action range, including black nylon/mesh backrest upholstery and black front and rear wheels, the Action 3NG delivers on both functionality and aesthetics.

Along with the ability to fully adjust the configuration of the Action 3NG, it is also available in 6 standard configurations to make the ordering process as simple and easy to use as possible.

Self-Propel – Suitable for individuals with some upper body strength and have the capacity to propel themselves or occasionally self-propel. *

Transit – Suitable for individuals who require an attendant for support during your time in the wheelchair. *

Dual Handrim  – Suitable for individuals for who predominantly have use of one side of their upper body. *

Compact – Suitable for smaller individuals who may require lower seat to ground heights, shorter legrests etc.*

Comfort – Suitable for individuals who require more supportive seating and positioning. *

Light – Suitable for people who would benefit from a lighter wheelchair. *

*The suitability to each model above is a very brief guide to give an understanding of how diverse the Action 3NG can be and not limited to the information provided. Your Retailer or Service Provider can offer more information on suitability according to individual needs.

Many propelling options
Many propelling options

Each user deserves to have the best solution: dual handrim propulsion, one arm lever drive, transit version,¿

Large choice of options and accessories
Large choice of options and accessories

Choose among many options and accessories to get the most suitable chair: reclining backrest, flip-back armrest, headrests,¿

Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Search for your nearest Invacare Retailer by completing the fields below.

Leave us a message

Please complete the details below to contact us.

Specifications & Downloads

Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Seat width

Seat width

380 / 405 / 430 / 455 / 480 / 505 mm

Seat depth

Seat depth

Self propel 400 / 450 / 500 mm / Transit 400 / 450 mm

Seat angle

Seat angle

0° / 3° / 6°

Seat height

Seat height

Self propel 360 / 385 / 410 / 435 / 460 / 485 / 510 mm / Transit 460 / 485 / 510 mm

Backrest angle

Backrest angle

0° / 7° / 0° - 30° / – 15° - +15°

Backrest height

Backrest height

Self Propel 325 - 510 mm / Transit 380 - 460 mm

Front frame angle

Front frame angle

80° / 0 - 75° / 90°

Length of footrests

Length of footrests

200 - 400 / 330 - 460 / 440 - 510 mm

Armrest height

Armrest height

200 - 280 / 240 / 170 - 300 / 210 - 350 mm

Driving unit width

Driving unit width

Self Propel Seat width + 190 mm / Transit +160mm

Total width folded

Total width folded

Self Propel 295 mm / Transit 260mm

Total height folded

Total height folded

795 - 1510 mm

Total length

Total length

Self Propel 980 - 1105 mm / Transit 950 - 1050 mm

Total length without footrests

Total length without footrests

Self propel 835 - 960 mm / Transit 710 - 910 mm

Total height

Total height

Self propel 820 - 1050 mm / Transit 920 - 1050 mm

Max. safe slope

Max. safe slope

Turning diameter

Turning diameter

870 mm

Max. User weight

Max. User weight

125 kg

Total weight

Total weight

Self propel 13.0 kg / Transit 13.5kg

Transport weight

Transport weight

Self propel 7.1 kg / Transit 10.3kg

Crash tested

Crash tested

Frame colour

Frame colour

Hypnotic Purple, Matt Black, Blue Pop, Matt Red, Pearl White, Slate Grey, Electric Green, Anthracite Black

Colour (other)

Colour (other)

Upholstery: Black Nylon
