Invacare Action 3 NG Light manual wheelchair

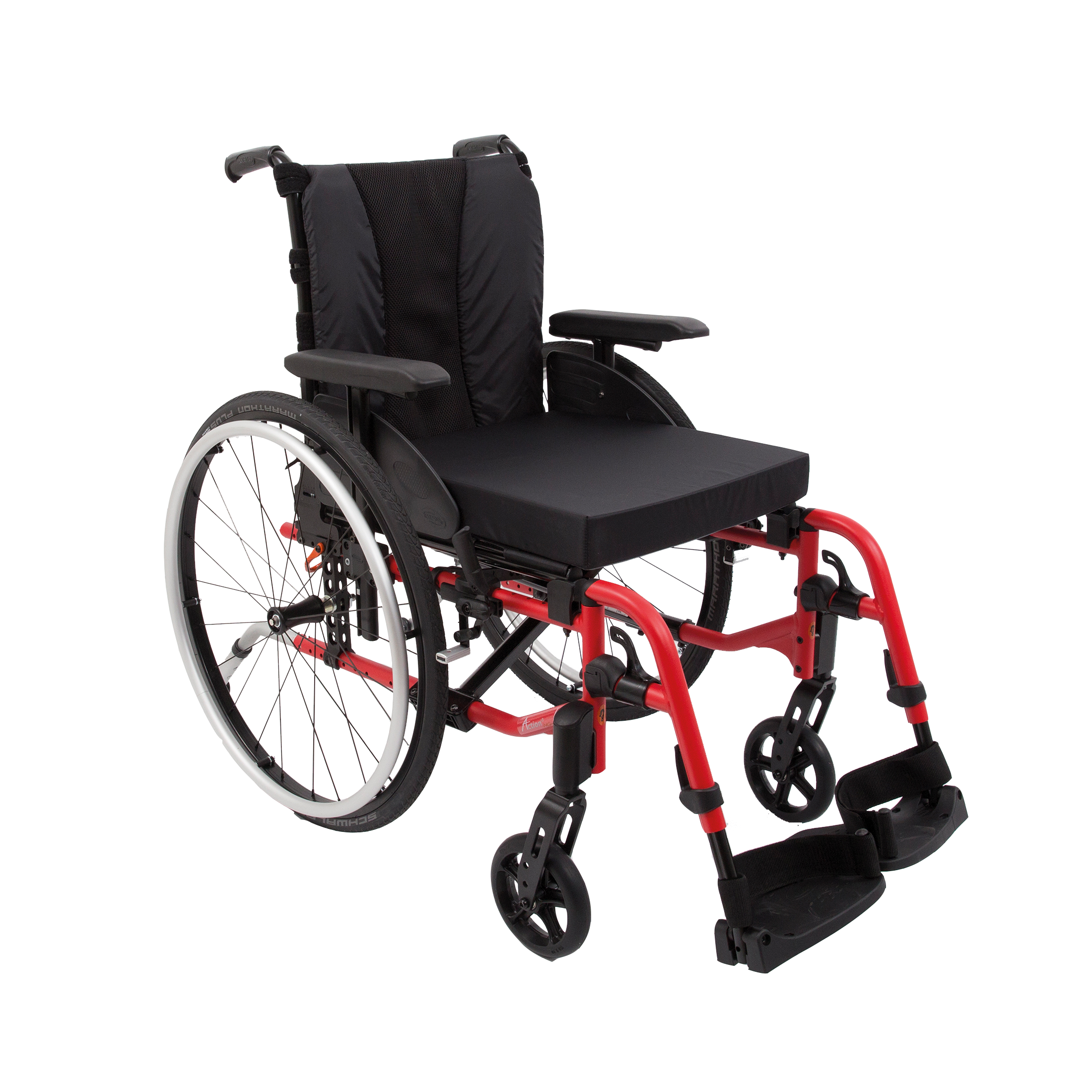

Manual wheelchair Invacare Action 3NG light red frame

The Invacare Action 3NG Light elevates the Action range even further with new cutting-edge designs that enable the wheelchair to smoothly glide, delivering effortless propulsion.  Featuring lightweight wheels and a cleverly designed lightweight castor housing to significantly optimize the drive performance and reduce energy consumption when propelling.

Manual wheelchair Invacare Action 3 NG light quick simple folding
Manual wheelchair Invacare Action 3 NG light black mesh bimaterial back upholstery
Manual wheelchair Invacare Action 3 NG light quick simple folding
Manual wheelchair Invacare Action 3 NG light black mesh bimaterial back upholstery
Manual wheelchair Invacare Action 3 NG light quick simple folding
Manual wheelchair Invacare Action 3 NG light black mesh bimaterial back upholstery

Built upon a lightweight aluminium folding frame that is designed to complement your daily activities at home or out and about, making the Action 3NG Light easy to store, transport and can be quickly adapted as you carry out your day.

This manual wheelchair can be highly configured to suit your clinical and functional needs, providing comfort and support where required. With an array of diverse options available and benefiting from the renowned cross compatibility built into the Action range, it is easy and simple to adjust your wheelchair according to your needs.

With its smart stream lined black standard features in combination with your choice of frame colour, the Action 3NG Light looks great and is a wheelchair to be proud.

Achieving a precise seating position with an adjustable backrest that provides positioning from   -15° to +15°, which can be carried out in one smooth process with the individual still sat in the chair.

Incorporating black mesh bi-material backrest upholstery to increase comfort and postural support. Designed to overlap the back canes minimizing contact and includes a new removable lumbar strap for desired positioning.

Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Search for your nearest Invacare Retailer by completing the fields below.

Leave us a message

Please complete the details below to contact us.

Specifications & Downloads

Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Seat width

Seat width

380 / 405 / 430 / 455 / 480 / 505 mm

Seat depth

Seat depth

400 / 450 / 500 mm

Seat angle

Seat angle

0° / 3° / 6°

Seat height

Seat height

385 / 410 / 435 / 460 / 485 / 510 mm

Backrest angle

Backrest angle

0° / 7° / – 15° - +15°

Backrest height

Backrest height

325 - 510 mm

Front frame angle

Front frame angle

80° / 0 - 75° / 90°

Length of footrests

Length of footrests

200 - 400 / 330 - 460 / 440 - 510 mm

Armrest height

Armrest height

200 - 280 / 240 / 170 - 300 / 210 - 350 mm

Driving unit width

Driving unit width

Seat width + 190 mm

Total width folded

Total width folded

295 mm

Total height folded

Total height folded

795 - 1510 mm

Total length

Total length

980 - 1105 mm

Total length without footrests

Total length without footrests

835 MM - 960 mm

Total height

Total height

820 - 1050 mm

Max. safe slope

Max. safe slope

Turning diameter

Turning diameter

870 mm

Max. User weight

Max. User weight

125 kg

Total weight

Total weight

13.0 kg

Transport weight

Transport weight

7.1 kg

Crash tested

Crash tested

Frame colour

Frame colour

Hypnotic Purple, Matt Black, Blue Pop, Matt Red, Pearl White, Slate Grey, Electric Green, Anthracite Black

Colour (other)

Colour (other)

Black nylon
