Manual wheelchair Invacare Action 4 NG

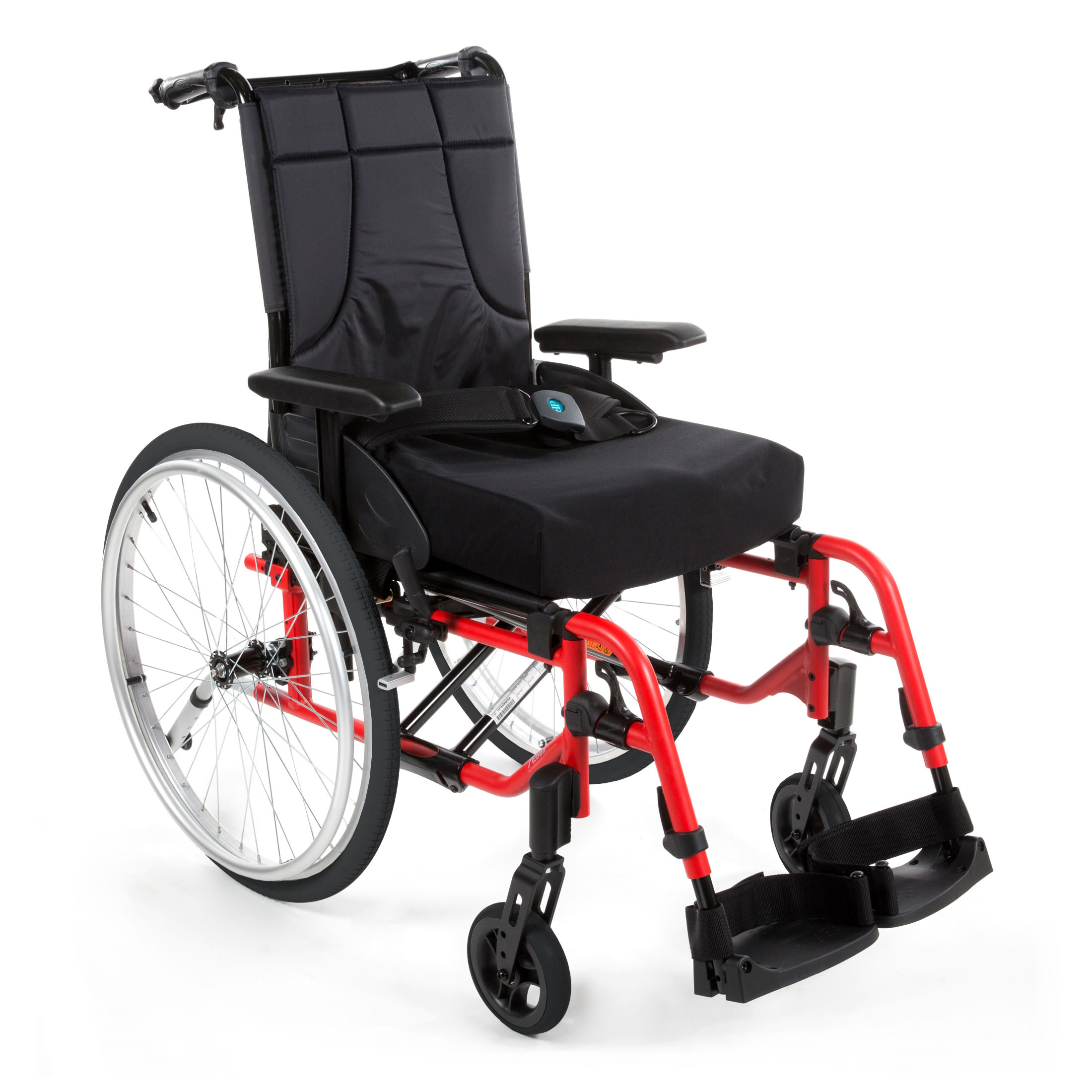

Manual wheelchair Invacare Action 4 NG red frame

The Invacare Action 4NG is the most durable model in the Action family. Built to accommodate individuals who maybe taller and heavier with a reinforced chassis and double cross brace system. Ensuring reliability and durability whilst maintaining a lightweight aluminium frame.

Now lighter than ever before from 14.0kg, the Action 4NG benefits from aluminium rear wheel supports, a lightweight castor housing as standard and the option of lightweight rear wheels. Ensuring that the wheelchair is as light as possible to help with efficient energy transfer when propelling and is easy to store and transport to suit your everyday activities. With great manoeuvrability and drive performance, the Action 4NG is perfect for use indoors and outdoors.

Manual wheelchair Invacare Action 4 NG red frame front view
Manual wheelchair Invacare Action 4 NG red frame side view
Manual wheelchair Invacare Action 4 NG reclining backrest
Manual wheelchair Invacare Action 4 NG happy couple
Manual wheelchair Invacare Action 4 NG handrim
Manual wheelchair Invacare Action 4 NG red frame front view
Manual wheelchair Invacare Action 4 NG red frame side view
Manual wheelchair Invacare Action 4 NG reclining backrest
Manual wheelchair Invacare Action 4 NG happy couple
Manual wheelchair Invacare Action 4 NG handrim
Manual wheelchair Invacare Action 4 NG red frame front view
Manual wheelchair Invacare Action 4 NG red frame side view
Manual wheelchair Invacare Action 4 NG reclining backrest
Manual wheelchair Invacare Action 4 NG happy couple
Manual wheelchair Invacare Action 4 NG handrim

Designed with a smart multi-functional rear wheel support that facilitates the height adjustment range of the chair along with the position of the rear wheel, allowing the chair to be as stable or as active as you need. The benefit of this design allows your chair set up, to be adjusted as your wheelchair skills and confidence improve.

Renowned for it’s high level of configuration possibilities with a vast range of options and accessories to adapt the wheelchair according to your functional and clinical requirements. A range that has been specifically developed for easy cross compatability and can be refurbished and re-issued using a familiar selection of options that are both simple to adapt and readily available.

Available in a self-propel, transit or heavy-duty version.

Aesthetically pleasing with smart black standard features and a choice of 8 vibrant frame colours to suit your personal taste.

Precise seating position can be achieved with the new angle adjustable backrest system from -15° to +15°.

A range of options and accessories to support your seating and positioning requirements.

Enjoy the ride
Enjoy the ride

The double cross brace system improves stability and comfort during the drive while offering an easy foldable wheelchair.

New lightweight components
New lightweight components

New lightweight castor housing and rearwheel support have been developed to reduce the wheelchair weight by nearly 1 kg.

Unique backrest foldable mechanism
Unique backrest foldable mechanism

The innovative, patented, angle adjustable backrest available in option enables users to fold the backrest on top of the seat for easy storage or transportation in a car.

Positioning options
Positioning options

Thanks to the Matrx range, wheelchair cushions and backrests can be adapt to users morphologies to fulfil all their requirements.

Angle adjustable legrests
Angle adjustable legrests

Combining length compensation with 0-80° elevation, this option enables pressure relief and optimal comfort position.

Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Search for your nearest Invacare Retailer by completing the fields below.

Leave us a message

Please complete the details below to contact us.

Specifications & Downloads

Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Seat width

Seat width

380 / 405 / 430 / 455 / 480 / 505 / 555 / 605 mm

Seat depth

Seat depth

400 / 450 / 500 mm

Seat angle

Seat angle

0° / 3° / 6°

Seat height

Seat height

self propel 360 / 385 / 410 / 435 / 460 / 485 / 510 mm / Transit 460 / 485 / 510 mm

Backrest angle

Backrest angle

0° / 7° / 0° - 30° / – 15° - +15°

Backrest height

Backrest height

Self Propel 325 - 510 mm / Transit 380 - 460 mm

Front frame angle

Front frame angle

80° / 0° - 75°

Length of footrests

Length of footrests

200 - 400 / 330 - 460 / 440 - 510 mm

Armrest height

Armrest height

200 - 280 / 240 / 170 - 300 / 210 - 350 mm

Driving unit width

Driving unit width

Self propel - Seat width + 190 mm / Transit + 160 mm

Total width folded

Total width folded

Self Propel 305 mm / Transit 265 mm

Total height folded

Total height folded

780 - 1060 mm

Total length

Total length

Self propel - 995 - 1170 mm / Transit 950 - 1050 mm

Total length without footrests

Total length without footrests

Self Propel 850 - 1025 mm / Transit 805 - 905 mm

Total height

Total height

Self propel 810 - 1040 mm / Transit 910 - 1040 mm

Max. safe slope

Max. safe slope

Turning diameter

Turning diameter

850 mm

Max. User weight

Max. User weight

125 / 160 kg*

Total weight

Total weight

Self propel 14.0 kg / Transit 14.5kg

Transport weight

Transport weight

Self propel 8.0 kg / Transit 11.7kg

Crash tested

Crash tested

Frame colour

Frame colour

Hypnotic Purple, Matt Black, Blue Pop, Matt Red, Pearl White, Slate Grey, Electric Green, Anthracite Black

Colour (other)

Colour (other)

Upholstery: Black Nylon

Colour (other)

Comment

*Heavy duty version
