Küschall K-series manual wheelchair

Manual wheelchair Küschall K-Series young man on the street

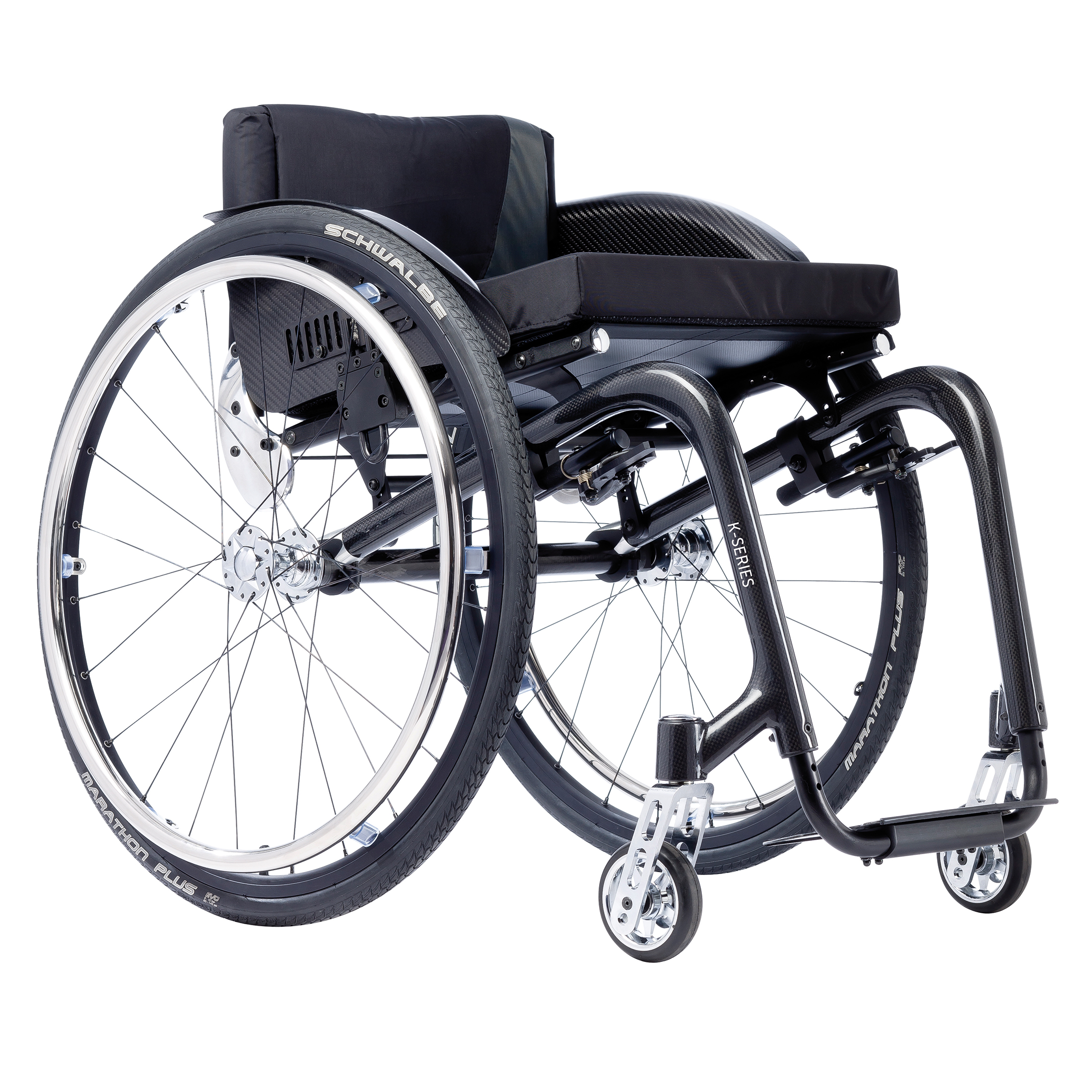

Manual wheelchair Küschall K-series

The küschall K-Series attract features all
the hallmarks you can expect from a precision engineered Küschall product.
Based on the iconic K-Series, this sleek and stylish chair features high levels
of adjustment and exceptional driving performance with its rigid energy
efficient design. The K-Series attract is lightweight with a minimalist design
and a durable frame boasting a five year warranty on the frame that offers a
cost effective mobility solution.

Manual wheelchair Kueschall K-Series men playing basketball
Manual wheelchair Kueschall K-Series men playing basketball
Manual wheelchair Kueschall K-Series young man outside
Manual wheelchair Kueschall K-Series young men on street
Manual wheelchair Kueschall K-Series men playing basketball
Manual wheelchair Kueschall K-Series men playing basketball
Manual wheelchair Kueschall K-Series young man outside
Manual wheelchair Kueschall K-Series young men on street
Manual wheelchair Kueschall K-Series men playing basketball
Manual wheelchair Kueschall K-Series men playing basketball
Manual wheelchair Kueschall K-Series young man outside
Manual wheelchair Kueschall K-Series young men on street
Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Search for your nearest Invacare Retailer by completing the fields below.

Leave us a message

Please complete the details below to contact us.

Specifications & Downloads

Sales Literature (1)
Technical data
Technical data
Seat width

Seat width

360 – 480 mm in increments of 20 mm

Seat depth

Seat depth

375 – 475 mm in increments of 25 mm

Seat height

Seat height

front: 480 - 510 mm rear: 400 – 480 mm in increments of 10 mm

Knee-to-heel length

Knee-to-heel length

290 – 480 mm in increments of 10 mm

Camber

Camber

0° / 3°

Backrest angle

Backrest angle

78° / 82° / 86° / 90°/ 94° 

Backrest height

Backrest height

315 – 480 mm in increments of 15 mm

Front frame angle

Front frame angle

75° / 90° tapered

Reversing width

Reversing width

920 – 1230 mm

Total width

Total width

SW + 170 mm

Total length

Total length

75°: approx. 830 mm; 90°: approx. 760 mm

Max. safe slope

Max. safe slope

Centre of gravity

Centre of gravity

80 mm / 95 mm /  110 mm / 125 mm

Max. User weight

Max. User weight

120 kg

Total weight

Total weight

approx. 10.3 kg

Transport weight

Transport weight

approx. 7 kg

Crash tested

Crash tested

Frame colour

Frame colour

Attract Black, Attract Blue, Attract Grey, Attract Red

User Manual (1)
Service Manual (1)
