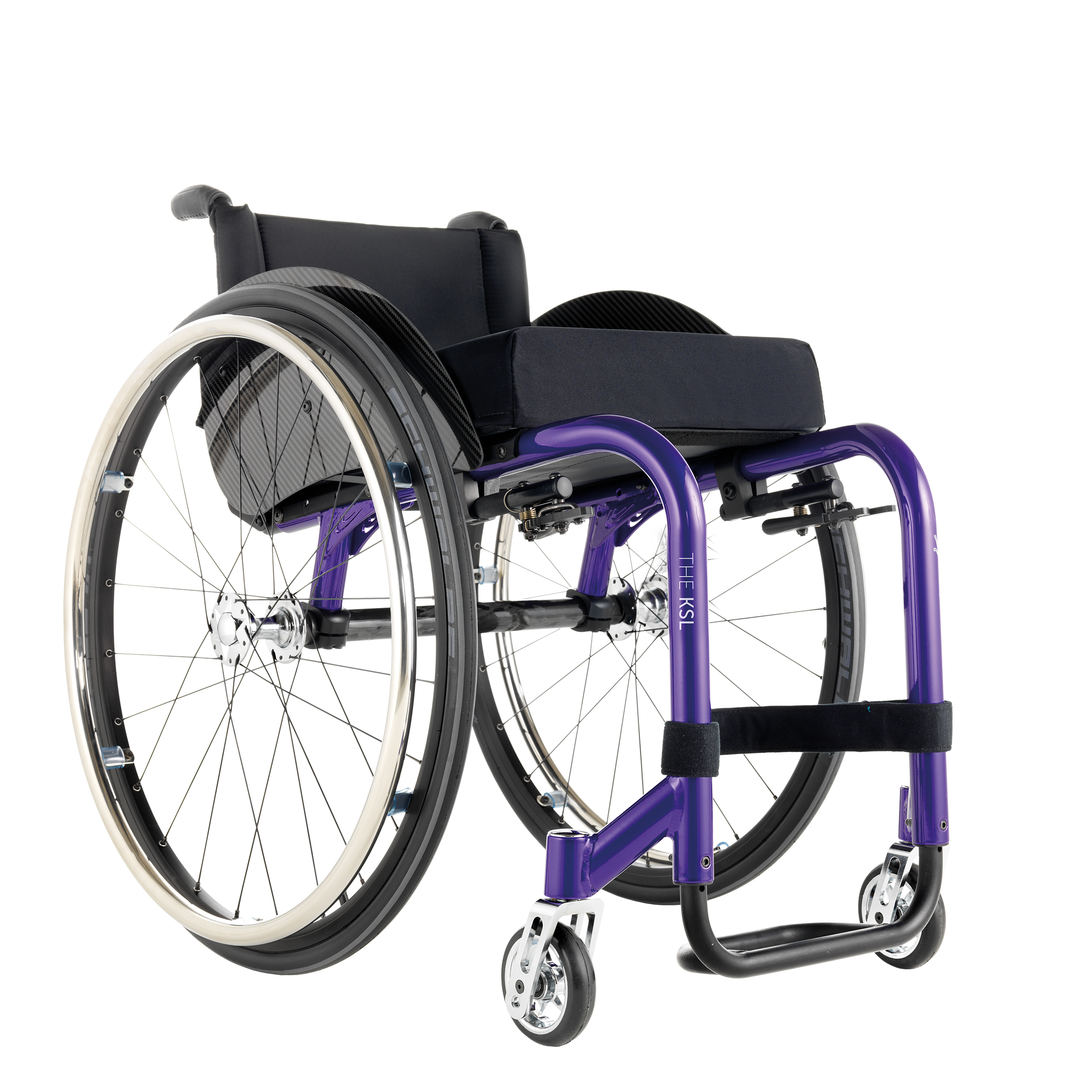

Küschall The KSL manual wheelchair

Discontinued product Discontinued product

With the name The KSL, Küschall went back to its roots, combining the K, a symbol for Küschall quality and design, with the letters for Super Light. With its sleek and dynamic design and high quality materials, The KSL manual wheelchair ensures not only the best driving performance and high stability, but lightness, with a total weight below 7 kg in the standard configuration.

The customization and high rigidity of The KSL gives outstanding driving performance for the user.

The KSL is designed to fit a variety of personalities and offers the best in quality and performance. It is designed to improve whatever lifestyle you have chosen, and to provide you with the perfect tool to express yourself in your active life.

Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map
Leave us a message

Please complete the details below to contact us.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
The data you enter will be processed by Invacare and its affiliates to respond to your request. By selecting this box you confirm that you have read the privacy policy of Invacare which contains further information on how Invacare processes your data and how you can exercise your existing rights. *
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

340 – 440 mm in increments of 20 mm

Seat depth

Seat depth

385 – 485 mm in increments of 25 mm

Seat height

Seat height

front: 450 – 530 mm rear: 400 – 480 mm in increments of 10 mm

Knee-to-heel length

Knee-to-heel length

350 – 500 mm in increments of 10 mm

Backrest angle

Backrest angle

74° / 78° / 82° / 86° / 90°

Backrest height

Backrest height

270 – 420 mm in increments of 15 mm

Front frame angle

Front frame angle

75° / 90° V-frame or tapered

Reversing width

Reversing width

920 – 1230 mm

Total width

Total width

SW + 170 mm

Total length

Total length

75°: approx. 800 mm; 90°: approx. 730 mm

Max. safe slope

Max. safe slope

Centre of gravity

Centre of gravity

80 mm / 95 mm / 110 mm/ 125 mm / 140 mm

Max. User weight

Max. User weight

100 kg

Total weight

Total weight

approx. 6.8 kg

Transport weight

Transport weight

approx. 4.3 kg

Frame colour

Frame colour

Smokey Grey, Ivory White, Nitro Pink, Black Mat, Night Shimmer, Mercury Blue, Flashy Yellow, Dynamite Orange, Atomic Violet, Glossy Black, Silver Grey, Royal Red

Colour (other)

Colour (other)

B-Blue, Arctic blue, Olive, Techno-anthracite, Chrome, Champagne, Copper glaze, Comet red

User Manual (1)
User Manual (1 archive)
Service Manual (1)
Service Manual (1 archive)
Test & Certificates (1)
Test & Certificates (1 archive)
