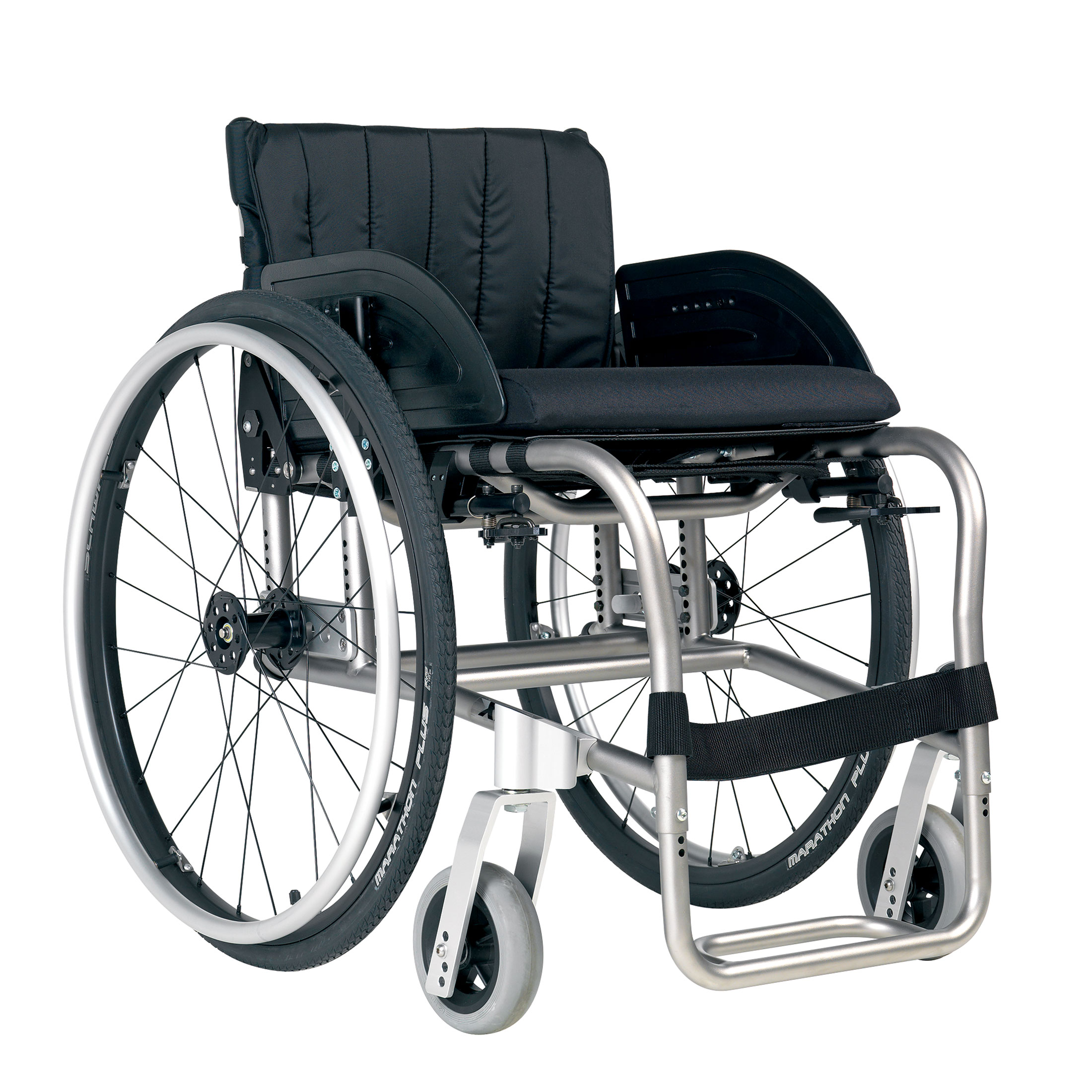

Invacare XLT Active & Dynamic manual wheelchair

Discontinued product Discontinued product

Invacare XTL Active is simply the perfect wheelchair for everyday use. It is specially designed with excellent features that offer a wide range of support for improved independence and mobility. Its sturdy box frame construction is built entirely from titanium giving stability and rigidity without compromising on weight.  The XLT is ideal to help regain, retain and improve both mobility and independence.

The chair is designed to suit a variety of needs. It is measured, constructed and fitted to suit the precise requirements of each person, and combined with the wide range of options and accessories, the possibilities are endless.

XTL is available as a fixed front frame for a more active style with a choice of frame angles, making the XLT a versatile active wheelchair.

Headrest: XLT is crash tested and offers a range of headrest options for additional support

Castors: A range of castor sizes support a wide range of seat heights and provides varying drive experiences.

Standard wheel: The Invacare XTL comes with optional Marathon Plus tyres for increased performance.

Front Castor Attachments: It is equipped with an easy to adjust front castor attachment for stability and performance.

Titanium Foot tube: Rigid, durable and lightweight, it provides a solid support for the feet and legs for improved posture.

Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map
Leave us a message

Please complete the details below to contact us.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
The data you enter will be processed by Invacare and its affiliates to respond to your request. By selecting this box you confirm that you have read the privacy policy of Invacare which contains further information on how Invacare processes your data and how you can exercise your existing rights. *
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

355 - 480 mm in increments of 15 mm

Seat depth

Seat depth

400/ 450/ 500 mm

Seat height

Seat height

400 - 520 mm

Knee-to-heel length

Knee-to-heel length

380 - 505 mm

Backrest angle

Backrest angle

+- 10°

Backrest height

Backrest height

200 - 490 mm

Front frame angle

Front frame angle

0 - 14°

Total width

Total width

SW + 200 mm

Total height

Total height

610 - 1050 mm

Max. User weight

Max. User weight

135 kg

Total weight

Total weight

9,8 kg

Transport weight

Transport weight

6 kg

Frame colour

Frame colour

Blue, Red, Black, Grey, Blasted Titanium (available as special orders), Orange (available as special orders)

Colour (other)

Colour (other)

Black Nylon, Black Jemima
