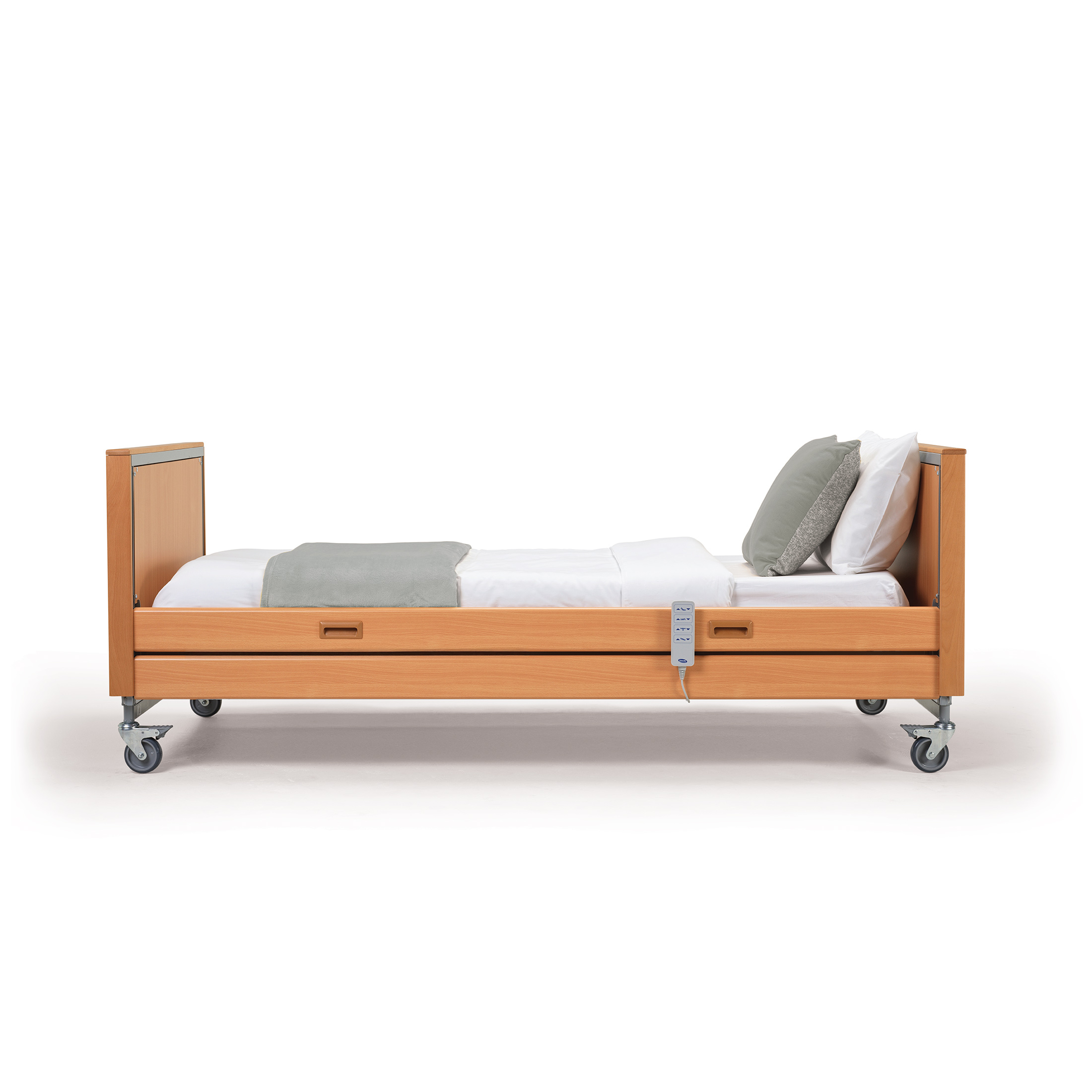

The Invacare Medley Ergo Medical Bed

Medley Ergo Family is one of the Invacare Medley Ergo range. The Medley Ergo range boast of several mattress platform sections that offers improved comfort for clients, reduces shear and friction when the bed sections are being adjusted and prevents clients sliding downwards.

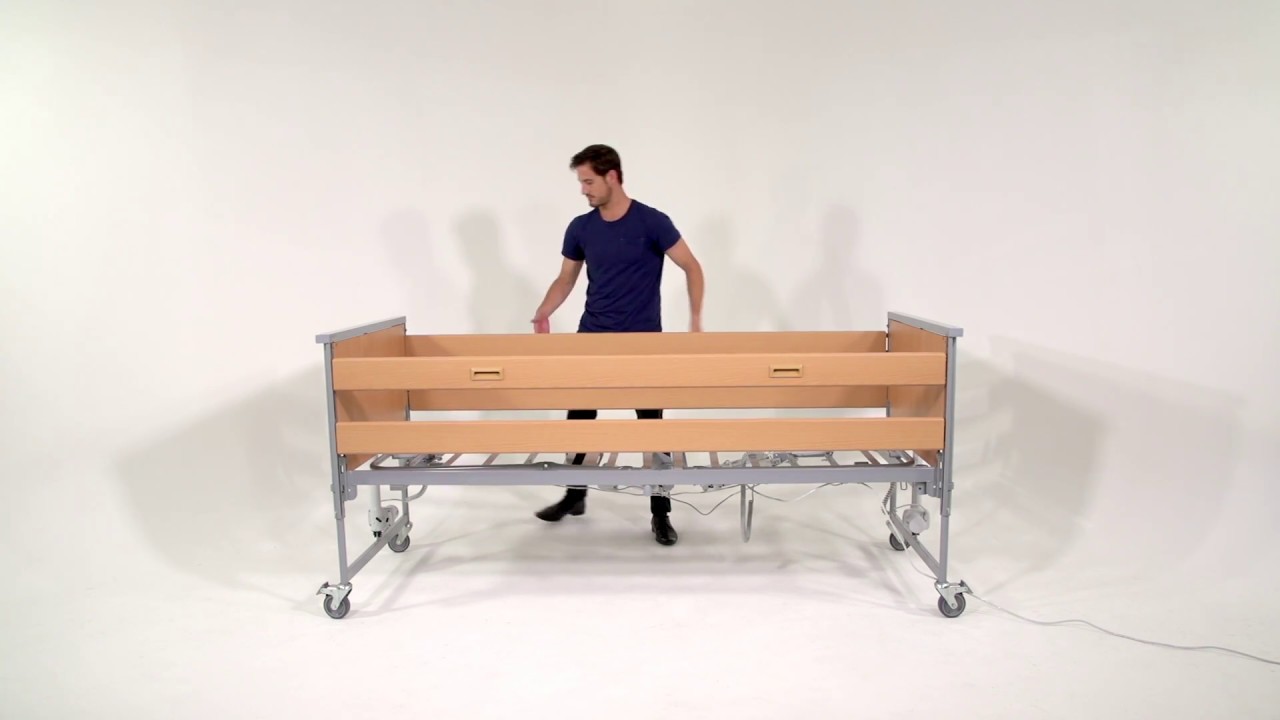

The Medley Ergo Family by Invacare is designed with special features – it is equipped with a special transport fitting that lets the bed collapsed easily, moved and re-installed in a variety of locations. Assembling of this bed is quite easy; you don’t need any tool or technician to get this done as anyone can simply do this following the instructions. This saves your time, effort, and money.

The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed
The Invacare Medley Ergo Medical Bed

Medley Ergo Family comes with a flexible design that lets the bed to be mounted at an extra low height, or a higher position (if preferred). This creates a range of working levels for the carer and transfer heights for the patient. This is made possible by the unique design of the bed end, which enables the mattress support to be mounted in both upper and lower positions. The side rails are strictly in compliance with the new standard – IEC 60601-2-52.

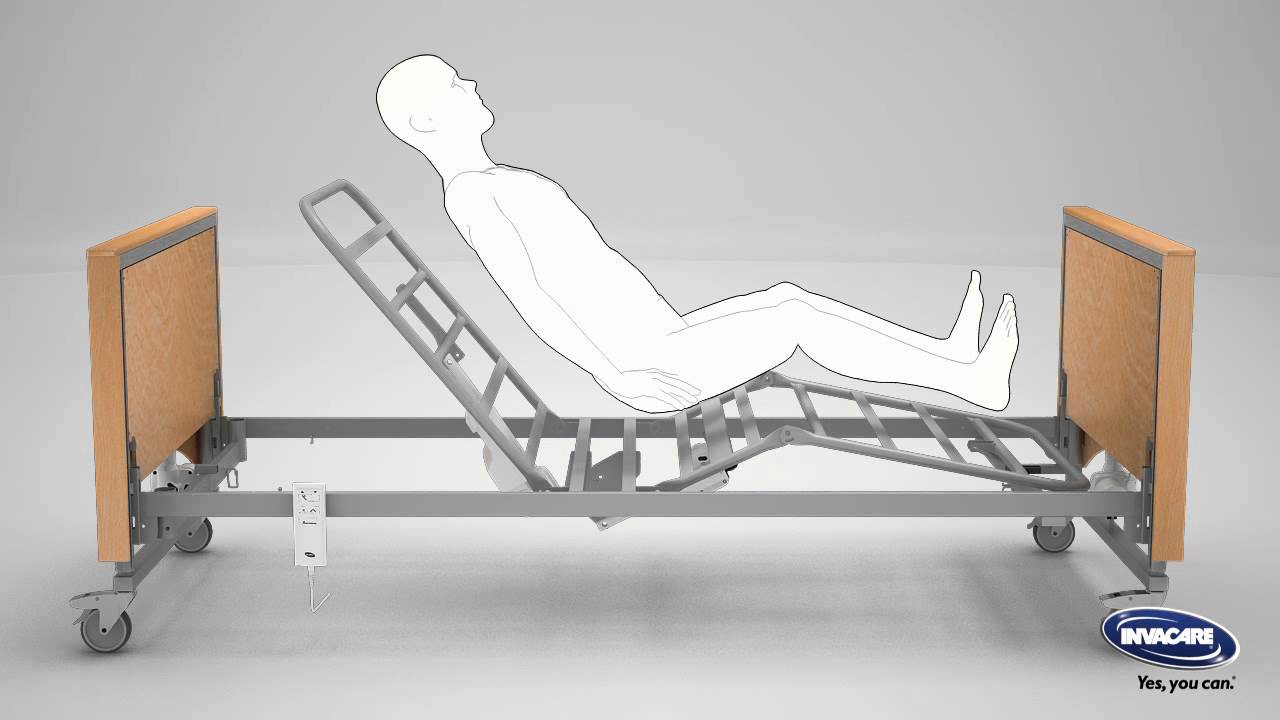

 This version of the Medley Ergo range reduces shear and friction, increases comfort when sitting, minimises the risk of slipping downwards during profiling, and it is optimised for shorter and unstable patients. Below are some key features of the Medley Ergo Family:

  • Homely design: Comes with an attractive modest design that fits perfectly with clients.
  • Medley Ergo Low: Makes it easier for individuals to get in and out of bed, equating to greater independence for users. Also offers a range of adjustable heights, from 21 - 61 cm and 28 - 68 cm.
  • Shipping and Storage: It is easy to transport when placed on the dedicated transporter.
  • Double height positions for bed ends: Adjustable height ranges for Medley Ergo of 33 – 73 cm or 40 – 80 cm. Medley Ergo Low 22 – 62 cm or 29 – 69 cm.
  • Lifting Pole: This makes it light and easily adjustable.
  • Mattress support extension: Come with the extension kit for increasing mattress support length by 15 cm.
Support handle
Support handle

Makes getting in and out of bed much easier for the patient.

Homely design
Homely design

The Medley Ergo Select offers a more attractive, homely design for Medley Ergo and Medley Ergo Low.

Medley Ergo Low
Medley Ergo Low

The ability to position the bed at a lower level means increased security for users and real peace of mind when going to sleep.

Shipping and Storage
Shipping and Storage

Medley Ergo beds are very easy to store and transport when placed on the dedicated transport.

Optimised dimensions of mattress platform
Optimised dimensions of mattress platform

According to expert recommendations for anthropometrical measurements and pressure mapping requirements to reduce shear and friction and increase client comfort.

Select design for Medley Ergo
Select design for Medley Ergo

The homely design of Medley Ergo Select can also be retro-fitted.

Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Leave us a message

Please complete the details below to contact us.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Width

Width

Outside: 1020 mm; Inside: 900 mm

Length

Length

Outside: 2240 mm Inside: 2080 mm

Height adjustment

Height adjustment

400 - 800 mm or 330 - 730 mm / Ergo Low - 280 - 680 mm or 210 - 610 mm

Mattress support dimensions

Mattress support dimensions

800 - 230 - 300 - 670 mm

Backrest angle

Backrest angle

0 - 70°

Thigh angle

Thigh angle

0 - 24°

Legrest lift

Legrest lift

0 - 11°

Anti-Trendelenburg / Trendelenburg

Anti-Trendelenburg / Trendelenburg

Tilt option: 11°

Max. User weight

Max. User weight

SWL 180 kg 145 kg

Total weight

Total weight

64 kg

The heaviest part

The heaviest part

17 kg

Frame colour and wood work

Frame colour and wood work

Silver, Beech

Side rails models

Side rails models

Scala 2, Verso II, Bella and Aria side rails
