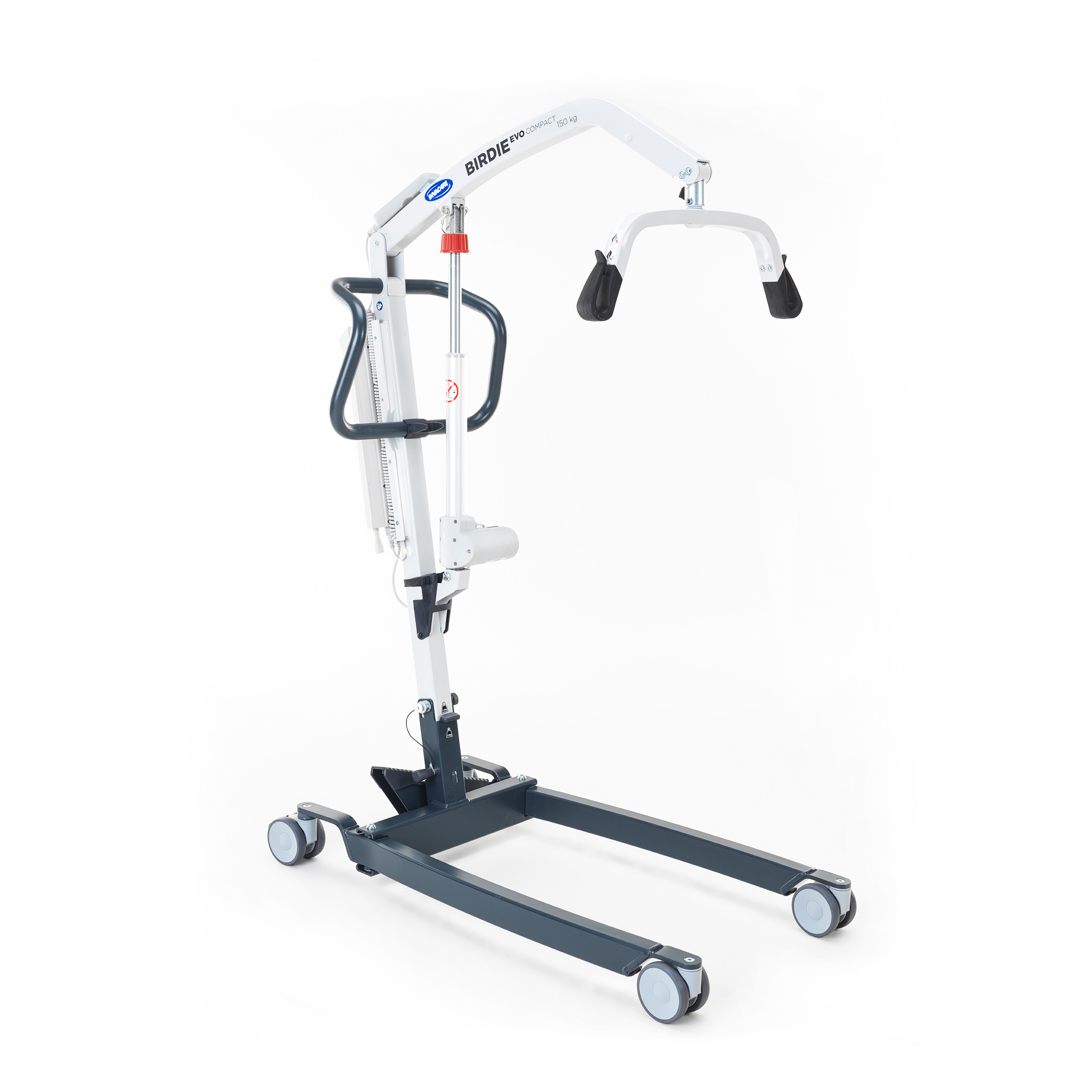

Invacare Birdie EVO COMPACT patient lifter (Ti Motion)

Birdie EVO Compact offers a comfortable lift and transfers to or from beds, chairs, or even the floor. Birdie Compact is CE-certified in line with the Medical Device Directive 93/42/ECC. The hoist has been thoroughly tested by Invacare and the German TÜV institute – an accredited external body. This is to ensure that the hoists comply with EN ISO 10535 (the European standard for hoists).

This patient lifting equipment is ideal for use in domestic and residential care environments; the hoist can fold and unfold easily without the need for tools. Birdie Evo Compact provides comfort and ease of use. The high boom maximises space for the client even when the hoist is in its highest position. This gives an ergonomic lift, and transfer, as the client can be easily rotated 360°, which makes positioning much easier for the carer.

The Invacare Birdie EVO COMPACT patient lifter
The Invacare Birdie EVO COMPACT patient lifter
The Invacare Birdie EVO COMPACT patient lifter

Birdie Evo Compact is simple to fold, unfold, and dismantle without tools. This makes it very easy to handle. The hoist takes up minimal space when stored and is easy to push and transport. If required, the mast and boom can also be easily detached from the base for easy transportation without any tools required. Below are some key features of the Invacare Birdie Compact:

Emergency stop, lowering, and integrated charger: Manual or electric emergency lowering (compact version only electric lowering). The control box is supplied with a detachable or fixed battery.

Manual leg spread: Users can simply step on the pedal to adjust the leg spread.

Long boom – high user comfort: The client can easily be rotated and positioned. This reduces the risk of injury to the knees.

Easy to fold and dismantle: Allows for ease of transportation and storage. No tools required when folding/unfolding or when dismantling the hoist.

Mounted spreader bar: This Allows correct and safe positioning of the spreader bar.

Scale: If needed, the scale is available approved, according to the medical standard EN 45501.

Find a retailer
Units: Kilometers
Address, City, Zip-Code, Country, ...
Geocodes origin from free text input, with Autocomplete option.

Leave us a message

Please complete the details below to contact us.

By submitting my information, I acknowledge that I have read and understand Invacare's privacy notice.
Specifications & Downloads
Technical data
Technical data
Safe working load

Safe working load

150 kg

Base length

Base length

1080 mm

Base width

Base width

520 mm

Inside width legs opened

Inside width legs opened

815 mm

Min - Max height at sling hook-up

Min - Max height at sling hook-up

530 - 1590 mm

Turning diameter

Turning diameter

1070 mm

Total weight

Total weight

31 kg

Ground clearance

Ground clearance

35 mm

Height of legs

Height of legs

115 mm

Height when folded

Height when folded

455 mm

Lifting  speed

Lifting speed

23mm/s

Working ability (lifts per charge)

Working ability (lifts per charge)

40 cycles

Frame colour

Frame colour

Light Grey: mast, boom and lifting arm RAL: 7035 Anthracite Grey: base, legs and push bar RAL: 7016

Comment

All measurements are taken with 100 mm castors (125 mm on the rear for XPLUS), a 2 point spreader bar and 80 kg person. For 75 mm castors, reduce height measurements by 15 mm. All measurements are taken with a tolerance of +-3%.
