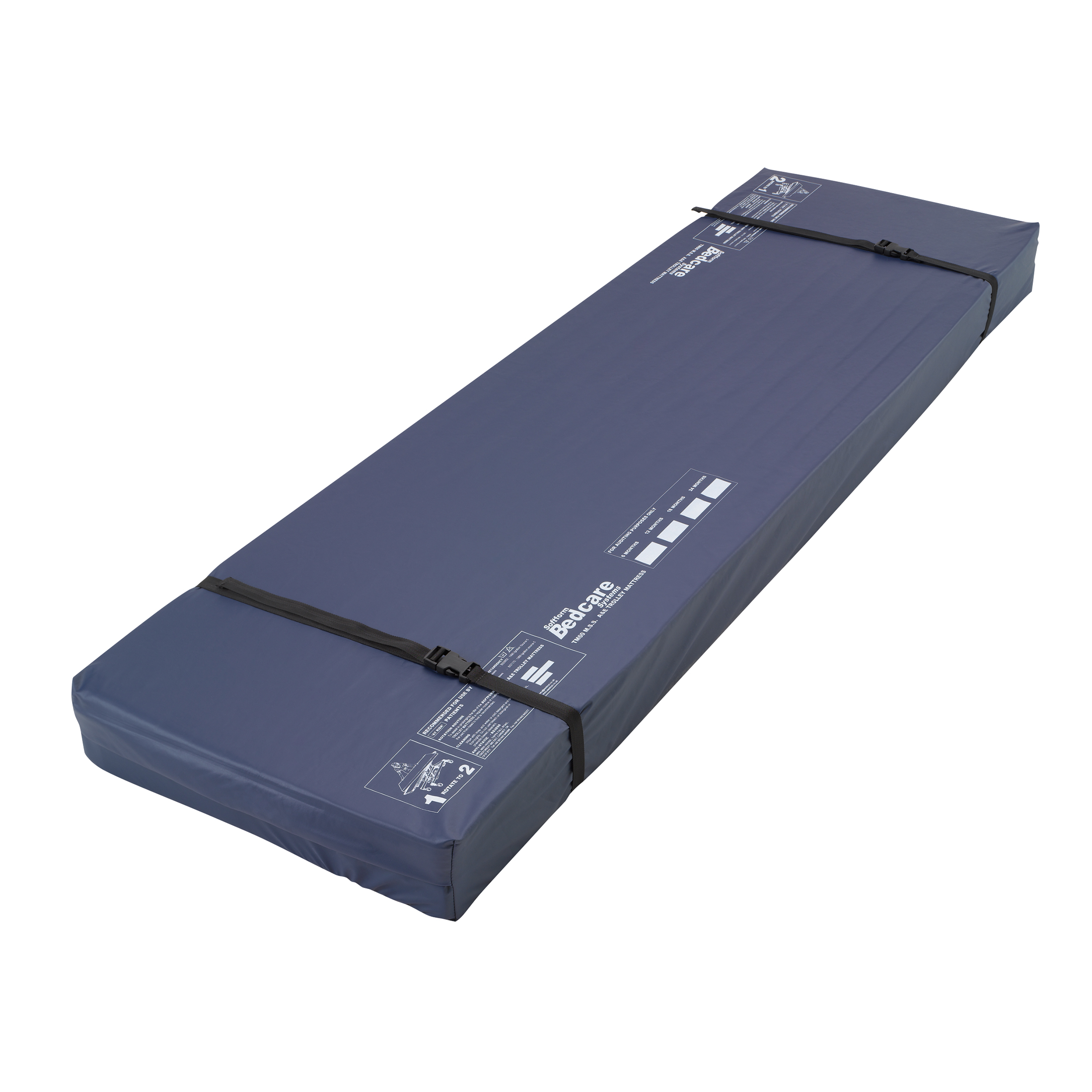

Invacare Softform Trolley Mattress Range

The Softform Trolley Mattress Range was specifically designed by Invacare to meet the needs of the A&E department. It is designed to meet the expectations of those who are considered at maximum risk of contracting pressure ulcers due to lack of movement, for this they use an advanced weight distribution design added to a comforting support surface designed entirely for patients found in the A&E area.


Invacare-softform-trolley-pressure-reducing-mattress-internal-image
Invacare-softform-trolley-pressure-reducing-mattress-internal-image
Invacare-softform-trolley-pressure-reducing-mattress-internal-image

It has a wide range of sizes, not only to fit the patient but also to the frames of the stretchers. In addition, they can be used in X-rays. The internal foam has a geometrically cut surface that reduces friction, in addition to increasing the surface where the patient rests his body, a characteristic that decreases pressure peaks.


The Softform Trolley Mattress Range also has several extras that can be added, such as a buckle and straps that prevent the movement of the mattress, avoiding it from sliding and falling while on a stretcher. The TM60 version can be ordered with additional features, to suit and needs of the buyer.


  • It can be found in different types of height: The TM20 with a height of 50mm, the TM40 with a height of 100mm and the TM60 with a height of 120mm.
  • It has an inspection zipper allowing the rapid revision of the foam core, in addition the TM60 model has a small additional cover that conceals the zipper.
  • Multi-stretch coverage designed to prevent friction and provide excellent patient recovery. In addition, the base is made of polyurethane, protecting the mattress against possible damage by the bed frames.
  • The mattress comes in different versions: TM20, TM40 and TM60. The TM60 version has the advantage of coming with different customizable options (visco elastic foam, octagonal corners and / or Hook & Loop fastenings).
  • The foam core has independent geometrically-cut surface cells which reduce shear and friction whilst increasing the overall support surface area for the patient.

 A maximum cleaning temperature of 80 º C allows the removal of stains and dirty with hot water.

Buckle and Straps
Buckle and Straps

This free of charge optional extra prevents the mattress from slipping whilst on the trolley

Inspection zip
Inspection zip

All mattresses have a zip to allow for easy inspection. A high frequency welded flap, concealing the zip, is available on the TM60 only

TM60 additional options
TM60 additional options

The 120 mm height, TM60 trolley mattress is available with visco elastic (memory) foam, octagonal corners and / or Hook & Loops fastenings, making it suitable for a range of platforms and requi

Available in a range of heights
Available in a range of heights

TM20: 50 mm TM60: 120 mm

Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map
Leave us a message

Please complete the details below to contact us.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
The data you enter will be processed by Invacare and its affiliates to respond to your request. By selecting this box you confirm that you have read the privacy policy of Invacare which contains further information on how Invacare processes your data and how you can exercise your existing rights. *
Specifications & Downloads
Sales Literature (1)
Technical data
Technical data
Width

Width

560 - 680 mm

Height

Height

5 cm - 12 cm

Length

Length

1830 - 1930 mm

Max. User weight

Max. User weight

TM 20 & 40 108 kg / TM60 140kg

Total weight

Total weight

TM20 - 5.5 kg / TM40 & 60 - 7kg

Max. cleaning temperature

Max. cleaning temperature

80°

Colour (other)

Colour (other)

Blue
