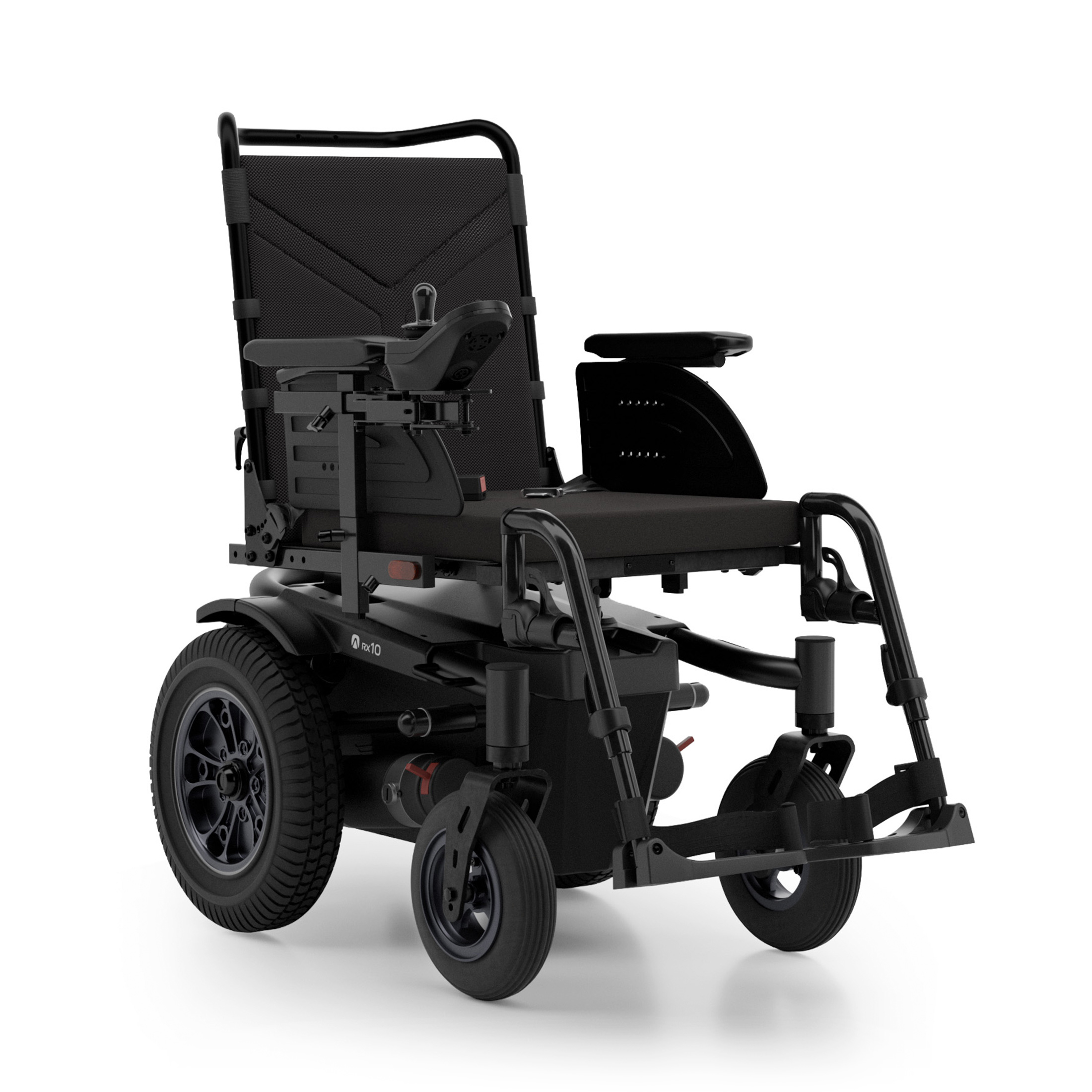

Access all areas with the new AVIVA RX10. An ultra-compact rear wheel drive power chair, designed to support effortless control in any environment. Narrow, intuitive and reassuring to drive, it’s built to deliver comfort and reliable performance.


From indoor surfaces to outdoor terrain, the RX10 offers a simple mobility solution without compromise. 14” drive wheels, a choice of 8 or
9” castors and a 75A power module ensure you drive in comfort and control at all times.

Built in combination with the market leading Action seating options, making individual positioning and adjustments quick and easy for optimal comfort.

Designed for ease-of-use and precise control, the AVIVA RX10 features LiNX technology to help make every day navigation easy.

Key features:

  • 539mm* Driving unit with. *See technical data for detailed product dimensions.
  • Easy set up with Action seating components.
  • Manual seat tilt 0-20° and backrest recline 0-30°. Powered option available.
  • Precise control with LiNX technology. Depending on configuration the RX10 is available with LiNX REM060, REM150, REM210 or REM215.
Ultra Compact
Ultra Compact

A key feature is the ultra compact base with a driving widh of just 539mm* to navigate tight indoor spaces with ease

Minimalist Design
Minimalist Design

With simplicity at its core, the RX10 gives you discreet and dependable mobility wherever you go.

Comfort and Control
Comfort and Control

Large 14" drive wheels ensure you drive in comfort and control indoors or outdoors.

Action Seating Components
Action Seating Components

Make personalised seating adjustments quick and easy.

LiNX Technology
LiNX Technology

Be in control and feel confident with our easy-to-use LiNX technology.

Find a retailer
Units: Kilometers
Address, City, Zip-Code, Country, ...
Geocodes origin from free text input, with Autocomplete option.

Leave us a message

Please complete the details below to contact us.

By submitting my information, I acknowledge that I have read and understand Invacare's privacy notice.
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Seat width

Seat width

430mm / 480mm (+25mm adjustment each side)

Backrest width

Backrest width

430mm / 480mm

Seat depth

Seat depth

410mm - 510mm

Seat to floor height

Seat to floor height

450mm / 470mm

Backrest height

Backrest height

510mm

Armrest height

Armrest height

240mm - 315mm

Length of footrests

Length of footrests

245mm - 370mm

Seat angle

Seat angle

0° - 20°

Backrest angle

Backrest angle

90° - 120°

Total height

Total height

1350mm

Total length inc. footrests

Total length inc. footrests

1035mm

Driving unit width

Driving unit width

539mm

Empty weight

Empty weight

113.6kg

Max. User weight

Max. User weight

136kg

Battery capacity

Battery capacity

51Ah GEL

Turning diameter

Turning diameter

1608mm / 1619mm

Max. climbable obstacle height

Max. climbable obstacle height

50mm

Ground clearance

Ground clearance

70mm

Max. safe slope

Max. safe slope

Static 9° (16%) / Dynamic 6° (10.5%)

Motor capacity

Motor capacity

2 x 300W

Battery type

Battery type

GEL

Speed

Speed

4mph / 6kph

Driving range

Driving range

18.14m / 29.2km

Crash tested

Crash tested

Frame colour

Frame colour

Black

Rim colour

Rim colour

Black

Shroud colour

Shroud colour

Black
