Manual wheelchair Rea Dahlia

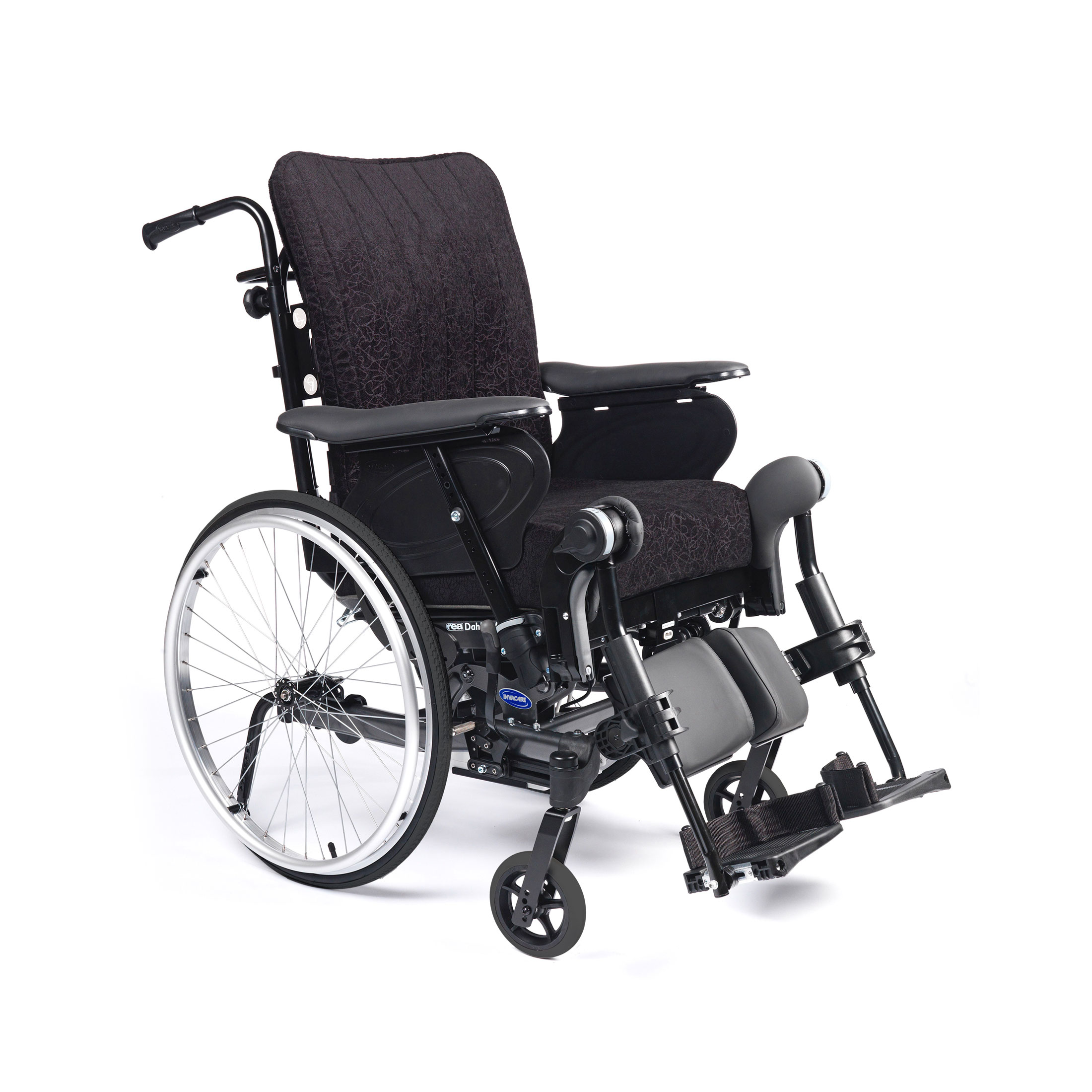

Manual wheelchair Invacare Rea Dahlia grey frame

The Rea Dahlia is the leader in modern tilt in space wheelchairs. With a sleek and stylish appearance, it incorporates a narrow wheelbase and increased tilt options with easy adjustability, synonymous with the Invacare Rea range of passive wheelchairs. The Dahlia features two seat tilt angles of either 30° or 45°, improving the positioning capabilities to reduce pressure. Designed to manage all aspects of postural support and comfort, the versatile seating system offers a wide choice of options and adjustments to ensure the exact requirements of every individual are met. The Rea Dahlia is the chair of choice where increased seat tilt and compact manoeuvrability are key.

Manual wheelchair Rea Dahlia
Manual wheelchair Rea Dahlia
Manual wheelchair Rea Dahlia Matrx Backrest as an option
Manual wheelchair Rea Dahlia 45° posterior pressure relief
Manual wheelchair Rea Dahlia stability in tilt position DSS
Manual wheelchair Rea Dahlia
Manual wheelchair Rea Dahlia
Manual wheelchair Rea Dahlia
Manual wheelchair Rea Dahlia Matrx Backrest as an option
Manual wheelchair Rea Dahlia 45° posterior pressure relief
Manual wheelchair Rea Dahlia stability in tilt position DSS
Manual wheelchair Rea Dahlia
Manual wheelchair Rea Dahlia
Manual wheelchair Rea Dahlia
Manual wheelchair Rea Dahlia Matrx Backrest as an option
Manual wheelchair Rea Dahlia 45° posterior pressure relief
Manual wheelchair Rea Dahlia stability in tilt position DSS
Manual wheelchair Rea Dahlia

The Invacare Rea Dahlia wheelchair is designed to accommodate a range of positioning requirements.  Both tilt and recline are easily adjusted by attendant gas pistons for light and effortless positioning.  An optional electric controlled version offers independent control of posture and comfort.  Adjustments are abundant on the Rea Dahlia, with every aspect of the wheelchair and seating system adaptable for the perfect level of support and postural management.

Stability is a strong feature of the Rea Dahlia delivering exceptional safety and confidence for the client with our unique DSS (Dual Stability System) built into every wheelchair.  When tilting and reclining, the seating system moves forward along the frame. This weight shifting guarantees exceptional stability is maintained, even when in full tilt and recline.  Additionally, the pivot points of the Rea Dahlia match the natural pivot points of the person for synchronised movement between the body and wheelchair, reducing the risk of sheer and pressure.

Flex 3, Backrest Plate: Sturdy and adaptable, the Flex 3 backrest plate provides support, with both width and height adjustment. Available with a range of postural support cushions.

Flex 3, tension adjustable backrest: Built to accommodate more complex spinal shapes, it offers multiple adjustments suitable for all body shapes and sizes.  Available with a padded cover to compliment the contours of the tension straps or a range of postural support cushions.

Wide range of options: In addition to the multiple adjustments in the chair, the Azalea boasts a large assortment of options and accessories, guaranteeing a solution for a wide range of postural challenges.

Seat tilt and Backrest recline: The Rea Dahlia features 30° or 45° of seat tilt and 30° of backrest recline supporting a range of positions. The unique construction of the tilt and recline mechanism delivers a smooth and light action, ideal for smaller carers.

Outrigged Pivot Joint. Enables the pivot points of the backrest to be adjusted wider by 50mm overall, creating more seat space. A wider backrest is fitted which is ideal for those requiring additional support

Adjustable centre of gravity:  The rear wheel position can be adjusted to increase the lightness and manoeuvrability of the Dahlia. It also allows access to self-propel wheels for increased independence.  Transit wheels are available for attendant propulsion.

Comfortable propelling and compact frame
Comfortable propelling and compact frame

Rear wheels are closer to the body of the user which increases comfort and enables the Dahlia to be easily propelled.

Excellence in manoeuvrability
Excellence in manoeuvrability

The manual wheelchair Rea Dahlia can be easily propelled with minimum effort as the rear wheels can be moved forward and closer to the arm of the user.

Individualized seat height adjustment
Individualized seat height adjustment

Low seat to floor height gives the user the possibility to foot propel, Dahlia brinks a large range of adjustment from 325 to 505 mm to meet user requirements.

Light tilt movement
Light tilt movement

Carer is able to tilt easily with minimum effort. The manual wheelchair Rea Dahlia 45 includes a push up spring making it easier for the chair to come up from a tilted position.

Reference T/R chair for pressure relieves
Reference T/R chair for pressure relieves

The manual wheelchair Rea Dahlia 45 allows a 45° tilt angle delivering excellent pressure relieve properties for those patients who are unable to use the recline to weight shift

Minimum friction and shear by Dual Stability System (DSS)
Minimum friction and shear by Dual Stability System (DSS)

The Dual Stability System (DSS) allows for body length compensation and so minimizes shear, friction and compression.

Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Search for your nearest Invacare Retailer by completing the fields below.

Leave us a message

Please complete the details below to contact us.

Specifications & Downloads

Technical data
Technical data
Seat width

Seat width

390-440 / 440-490 / 490-540 16” (390-490/ 440-540/ 490-590 mm)

Seat depth

Seat depth

430 - 500 mm

Seat angle

Seat angle

30°: –1 - 30° / 45°: 0 - 45°

Seat height

Seat height

30°: 330 - 500 mm / 45°: 350 - 500 mm

Backrest angle

Backrest angle

0° - 30°

Backrest height

Backrest height

500 - 800 mm (without seat cushion)

Length of footrests

Length of footrests

330 - 500 mm

Armrest height

Armrest height

250 - 320 mm

Driving unit width

Driving unit width

SW + 160 mm (16”) / SW + 180 mm (24”)

Total length inc. footrests

Total length inc. footrests

900 - 1180 mm

Total height

Total height

30°: 825 - 1250 mm / 45°: 850 - 1250 mm

Max. safe slope

Max. safe slope

Turning diameter

Turning diameter

755 mm

Max. User weight

Max. User weight

Max 135 kg

Total weight

Total weight

>35 kg

Transport weight

Transport weight

21 / 25 kg (SW 390 mm)

Crash tested

Crash tested

Frame colour

Frame colour

Black

Colour (other)

Colour (other)

Black Dartex TR26, Black plush TR35, Black spacer TR36

Comment

1. Overall weight in seat width 39 cm and with lightest configuration. The E-tilt and Recline option adds 4,2 kg to the transport weight, 2. Transport weight increases with 4,2 Kg if the E-Tilt & Recline option is used.
