Küschall Compact manual wheelchair

Manual wheelchair K-Series young woman on the beach

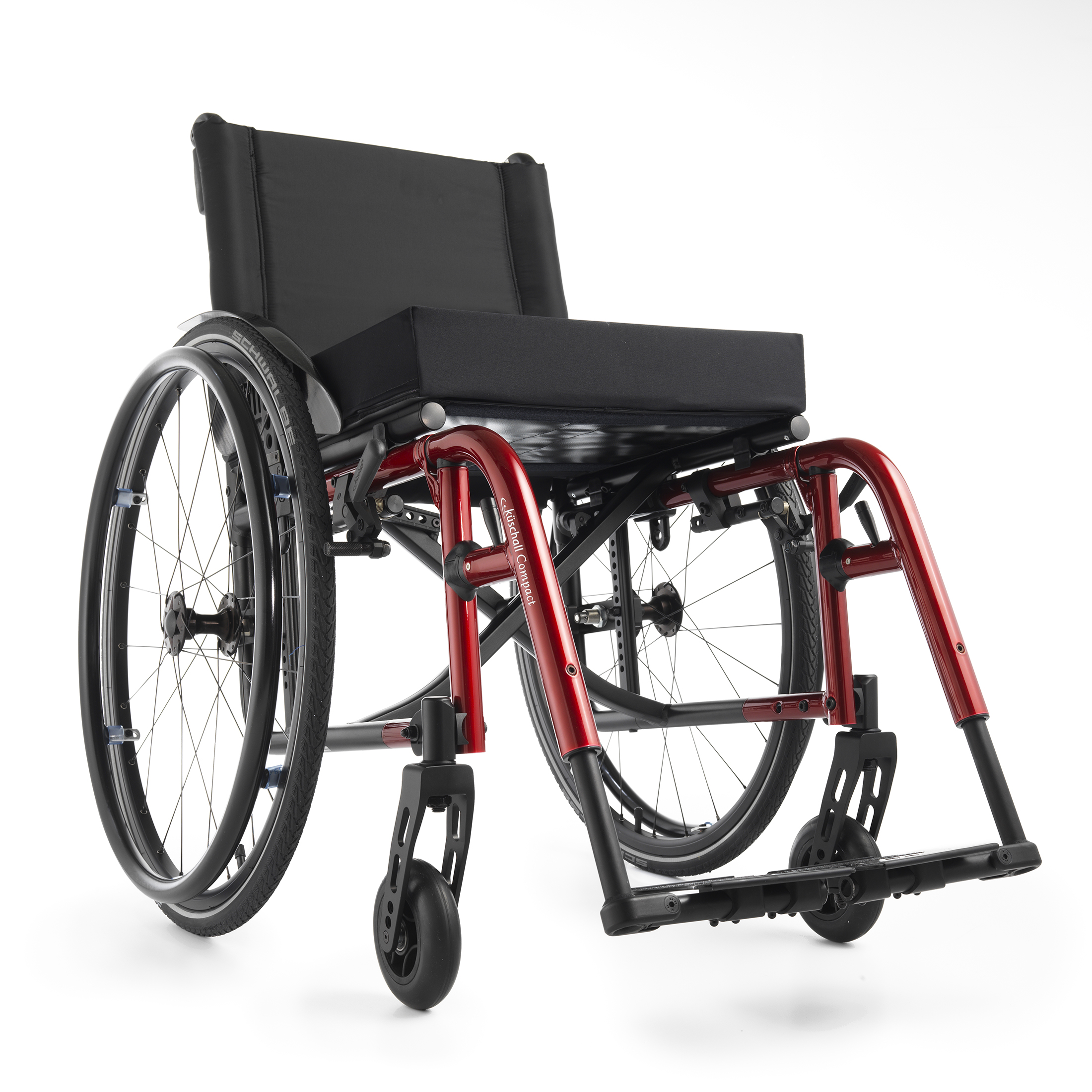

Manual wheelchair Küschall Compact
Discontinued product Discontinued product

The Kuschall Compact is an easy to drive wheelchair adapted to suit individuals with reduced strength. The wide range of adjustment and configuration possibilities make the Kuschall Compact a functional and reliable wheelchair, and it can also be adapted for hemiplegics.

Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Search for your nearest Invacare Retailer by completing the fields below.

Leave us a message

Please complete the details below to contact us.

Specifications & Downloads

Technical data
Technical data
Seat width

Seat width

280 – 500 mm in increments of 20 mm

Seat depth

Seat depth

320 – 500 mm in increments of 20 mm

Seat height

Seat height

front: 410 – 530 mm; rear: 380 – 500 mm in increments of 10 mm

Knee-to-heel length

Knee-to-heel length

210 – 510 mm in increments of 10 mm

Camber

Camber

0° / 3°

Backrest angle

Backrest angle

82° / 86° / 90° / 94° /  98° / 102 °

Backrest height

Backrest height

300 – 510 mm in increments of 15 mm

Front frame angle

Front frame angle

70° / 80° / 90°

Reversing width

Reversing width

920 – 1230 mm

Total width

Total width

SW + 180 mm

Total width folded

Total width folded

approx. 290 mm

Total length

Total length

70°: approx. 940 mm; 80°: approx. 890 mm; 90°: approx. 840 mm

Max. safe slope

Max. safe slope

Max. User weight

Max. User weight

130 kg

Total weight

Total weight

approx. 11 kg

Transport weight

Transport weight

approx. 8.3 kg

Frame colour

Frame colour

Smokey Grey, Ivory White, Nitro Pink, Black Mat, Night Shimmer, Mercury Blue, Flashy Yellow, Dynamite Orange, Atomic Violet, Glossy Black, Umber Glaze, Royal Blue, Silver Grey, Royal Red

Colour (other)

Colour (other)

B-Blue, Arctic blue, Olive, Techno-anthracite, Chrome, Champagne, Copper glaze, Comet red
