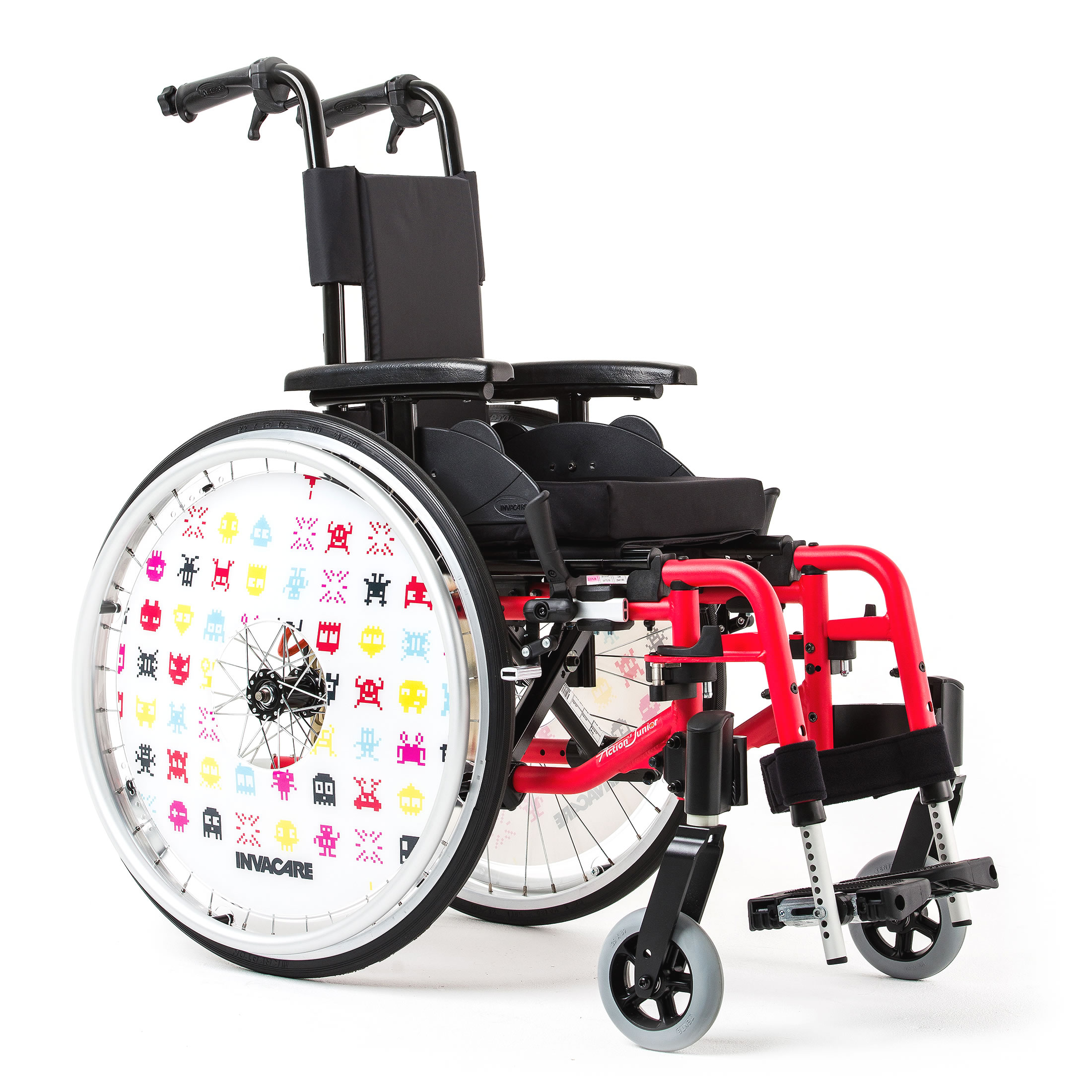

Invacare Action 3 Junior children wheelchair

Manual wheelchair Invacare Action 3 Junior
Manual wheelchair Invacare Action 3 Junior

The Action 3 Junior wheelchair by Invacare is capable of adapting to all stages of the child's growth. Invacare knows perfectly that children demand freedom and fun, and that’s what this model was designed for. Comfort is guaranteed as the Action 3 Junior is able to adapt to all body shapes.

Manual wheelchair Invacare Action 3 Junior light blue yellow red frame
Manual wheelchair Invacare Action 3 Junior spokeguards
Manual wheelchair Invacare Action 3 Junior easy transportation
Manual wheelchair Invacare Action 3 Junior children
Manual wheelchair Invacare Action 3 Junior light blue yellow red frame
Manual wheelchair Invacare Action 3 Junior spokeguards
Manual wheelchair Invacare Action 3 Junior easy transportation
Manual wheelchair Invacare Action 3 Junior children
Manual wheelchair Invacare Action 3 Junior light blue yellow red frame
Manual wheelchair Invacare Action 3 Junior spokeguards
Manual wheelchair Invacare Action 3 Junior easy transportation
Manual wheelchair Invacare Action 3 Junior children

Thanks to the Action 3 Junior wheelchair, your children will enjoy new ways of freedom. It has an integrated system that allows them to be modified in width, length and depth. In addition to this, the varied design options for both the chair and the spoke guards will allow children to pick their favourite style. Another great advantage that this manual wheelchair has is the adaptability of the seat, since it can be moved to three different height options, which are: 410, 435 and 460 mm.

Its aluminum structure ensures a high quality and great durability over time. Its armrests are easily removable and height adjustable as are the hangers, which are adaptable for abduction. It comes in a comfortable and compact size to make it easy to move without any limitations.

  • Adaptability and comfort at every stage of growth: The Action 3 Junior wheelchair has an integrated system that allows it to be modified in width, length and depth.
  • Removable armrests: users can remove the armrests with great ease.
  • Great adaptability of the seat: it can be moved to three different height options, 410, 435 and 460 mm.
  • 3 spoke guards designs that can be changed over time
  • Compact size: this chair model has a lightweight frame, a folding backrest and legrests, which makes it easy to transport and very compact to move.

Adjustable ankle grips: they can be adjusted to the position of the foot and come in 3 sizes.

Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Search for your nearest Invacare Retailer by completing the fields below.

Leave us a message

Please complete the details below to contact us.

Specifications & Downloads

Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Seat width

Seat width

Small 205 / 230 / 255 / 280 / Large 305 / 330 / 355 / 380 mm

Seat depth

Seat depth

Small 200 - 250 / 250 - 300 / 300 - 350 / 275 -325 / 325 - 375 mm / Large

Seat angle

Seat angle

1.5° / 5° / 8.5°

Seat height

Seat height

410 / 435 / 460 mm

Backrest angle

Backrest angle

0° / 7° / 0° - 30°

Backrest height

Backrest height

350 - 430 mm

Front frame angle

Front frame angle

80° / 90° / 0° - 80°

Length of footrests

Length of footrests

125 - 450 mm

Armrest height

Armrest height

150 - 250 / 180 - 280 mm

Driving unit width

Driving unit width

Seat width + 190 / + 170 mm*

Total width folded

Total width folded

315 / 270* mm

Total length

Total length

Small 740 - 965 mm / Large 900 - 1000 mm

Total length without footrests

Total length without footrests

Small 510 - 740 mm / Large 670 - 770 mm

Total height

Total height

870 - 1130 mm

Max. safe slope

Max. safe slope

12°

Turning diameter

Turning diameter

750 mm

Max. User weight

Max. User weight

80 kg

Total weight

Total weight

15 / 14.5 kg

The heaviest part

The heaviest part

8.5 / 12 kg

Crash tested

Crash tested

Frame colour

Frame colour

Pearl White, Matt Black, Matt Red, Intense Yellow, Polar Blue, Candy Pink

Colour (other)

Colour (other)

Black Nylon

Comment

* Transit version
