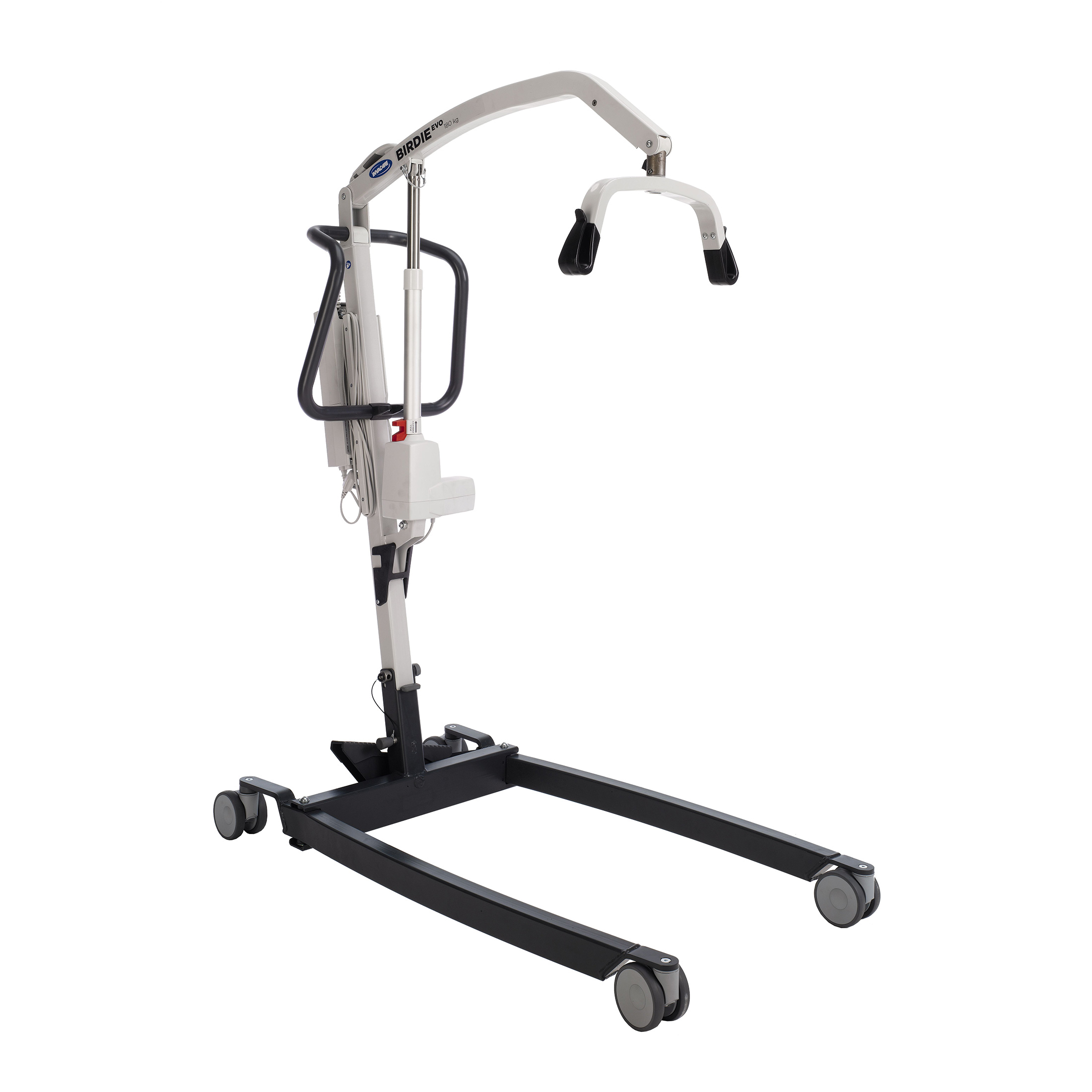

The Invacare Birdie Evo patient lifter

The Invacare Birdie EVO and Birdie EVO Compact are specially designed to offer a comfortable lift and transfer to or from beds, chairs, or even the floor. Ideal for use in domestic and residential care environments, the hoists are designed to fold and unfold easily without the need for tools.

Birdie EVO provides comfort and ease of use. Invacare’s patient lifting equipment maximises space for the client even when the hoist is in its highest position. This gives an ergonomic lift, and transfer, as the client can be easily rotated 360°, which makes positioning much easier for the carer.

The Invacare Birdie Evo patient lifter
The Invacare Birdie Evo patient lifter
The Invacare Birdie Evo patient lifter
The Invacare Birdie Evo patient lifter
The Invacare Birdie Evo patient lifter
The Invacare Birdie Evo patient lifter
The Invacare Birdie Evo patient lifter
The Invacare Birdie Evo patient lifter
The Invacare Birdie Evo patient lifter
The Invacare Birdie Evo patient lifter
The Invacare Birdie Evo patient lifter
The Invacare Birdie Evo patient lifter
The Invacare Birdie Evo patient lifter
The Invacare Birdie Evo patient lifter
The Invacare Birdie Evo patient lifter

Ease of handling is another notable feature the hoist has been made as smooth and easy as possible and can easily be folded and unfolded without the need for tools. It takes up minimal space when stored and  easy to push and transport. If required, the mast and boom can also be easily detached from the base for easy transportation without any tools required.

The Birdie EVO is CE-certified in line with the Medical Device Directive 93/42/ECC. The hoists have been rigorously tested by Invacare and the German TÜV institute – an accredited external body. This is to ensure that the hoists comply with EN ISO 10535 (the European standard for hoists).

The Compact version offers a smaller footprint making it easier to manoeuvre and operate within environments where space is limited. Its lifting range is 530-1590mm and has amaximum user weight of 150kg.

Key features include:

  • Long boom – high user comfort:  The client can easily be rotated and positioned. Reduced risk of injury to the knees.
  • Easy to fold and dismantle: Allows for ease of transportation and storage. No tools required when folding/unfolding or when dismantling the hoist.
  • Snap lock: It features a nap lock that ensures optimal security.
  • Emergency stop, lowering, and integrated charger: Manual or electric emergency lowering (compact version only electric lowering). The control box is supplied with a detachable or fixed battery.
  • Manual leg spread: Users can simply step on the pedal to adjust the leg spread.
  • Available as Birdie Evo or Birdie Evo Compact

Mounted spreader bar: This Allows correct and safe positioning of the spreader bar.

Perfect hook design
Perfect hook design

Attach slings easily with one hand on a larger surface for more stability.

U-Shape Spreader bar
U-Shape Spreader bar

Giving more space for the client's head and enabling to maintain interaction between client and carer

Ergonomic Push Bar
Ergonomic Push Bar

Ergonomic design of the push bar makes handling and manoeuvring easier. Increased depth of handles allows for comfortable arm extension during transportation.

Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Leave us a message

Please complete the details below to contact us.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Technical data
Technical data
Safe working load

Safe working load

180 kg

Base length

Base length

1220 mm

Base width

Base width

640 mm

Inside width legs opened

Inside width legs opened

1020 mm

Min - Max height at sling hook-up

Min - Max height at sling hook-up

415 - 1660 mm

Turning diameter

Turning diameter

1400 mm

Total weight

Total weight

40 kg

Ground clearance

Ground clearance

35 mm

Height of legs

Height of legs

115 mm

Height when folded

Height when folded

455 mm

Lifting  speed

Lifting speed

30 mm/s

Working ability (lifts per charge)

Working ability (lifts per charge)

40 cycles

Frame colour

Frame colour

Light Grey: mast, boom and lifting arm RAL: 7035 Anthracite Grey: base, legs and push bar RAL: 7016

Frame colour

Comment

All measurements are taken with 100 mm castors (125 mm on the rear for XPLUS), a 2 point spreader bar and 80 kg person. For 75 mm castors, reduce height measurements by 15 mm. All measurements are taken with a tolerance of +-3%.
