Discontinued product Discontinued product

The Aquatec PICO is a modular system available as a PICO shower chair, stool or as a PICO 3in1 commode and all modular with optional armrests and backrests. Aquatec PICO can be adjusted easily to suit users’ specifications. Its large hygiene recess makes it easier for personal hygiene. It can fit perfectly into small spaces.

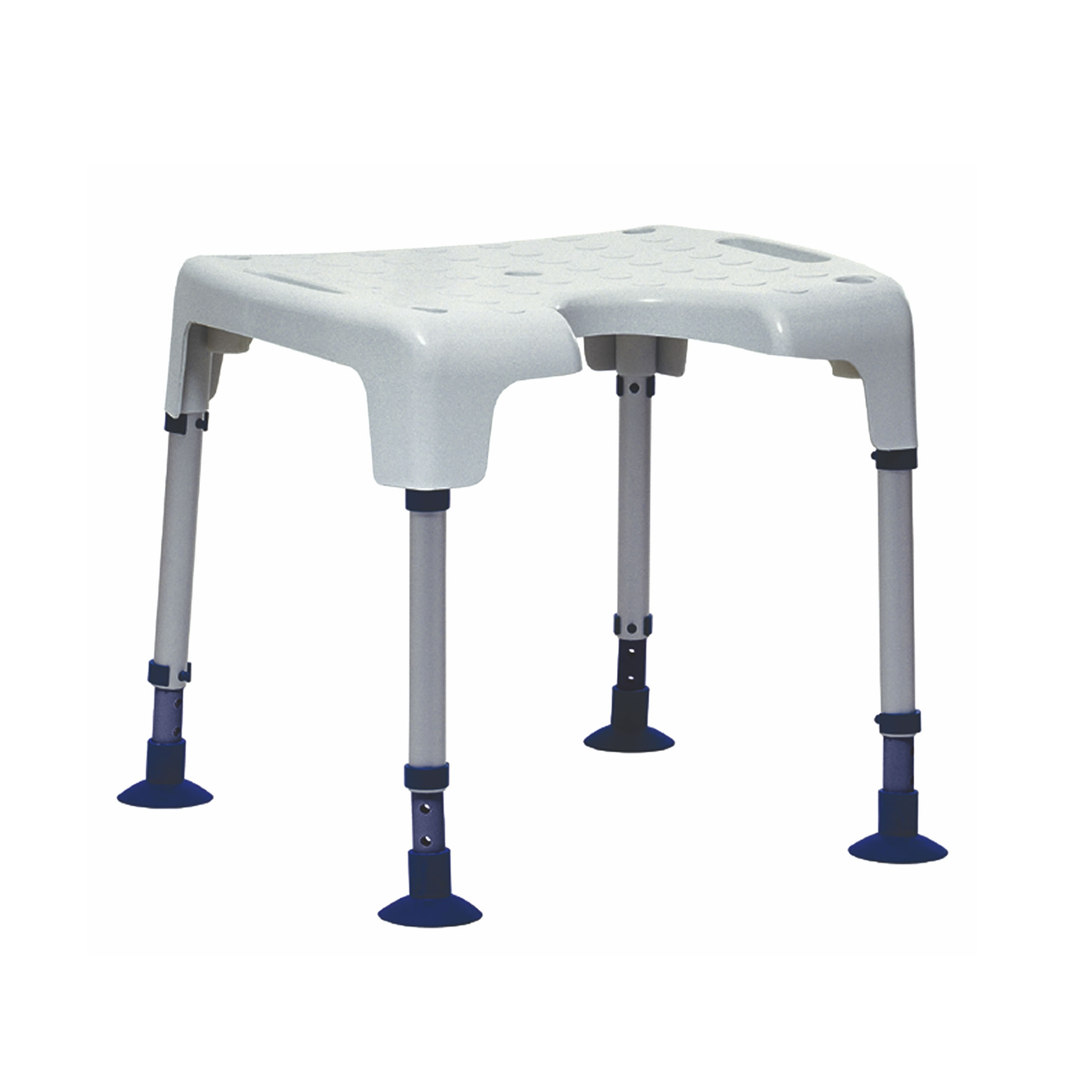

The stool features rubber feet, and a textured surface that provides exceptional comfort and stability for transfers. A simple, lightweight, and highly durable designed shower stool is transportable and easy to store away when not in use.

The all-corrosion free modular shower stool range is the best choice for those who need assistance in the bathroom for their personal hygiene.

Key Features:

  • Versatility: Build your PICO without using tools. You can, for example, use one armrest only if space is limited.
  • High load capacity: Aquatec PICO has a high load capacity of 160 kg in every configuration.
  • Adaptability: PICO is a modular shower chair concept that can be adapted to one’s demands without using any tools.
  • Lightweight: It features a lightweight design for improved functionality.
Versatility
Versatility

Build your own personal PICO without using tools. For limited space, e.g. you can use one armrest only.

High load capacity
High load capacity

High load capacity of 160 kg in every configuration.

Hygiene recess - Make your choice
Hygiene recess - Make your choice

Large hygiene recess either at the front or back due to variable positions of the backrest.

Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Leave us a message

Please complete the details below to contact us.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Seat width

Seat width

430 mm

Seat depth

Seat depth

420 mm

Seat height

Seat height

425 - 575 mm

Total width

Total width

575 mm

Total depth

Total depth

520 mm

Total height

Total height

825 - 975 mm

Width between armrests

Width between armrests

430 mm

Armrest height

Armrest height

605 - 755 mm

Armrest height

Adjustment range, inner dimension

25 mm

Depth hygiene recess

Depth hygiene recess

145 mm

Width hygiene recess

Width hygiene recess

180 mm

Max. User weight

Max. User weight

160 kg

Weight

Weight

3,2 kg (shower stool); 4,1 kg (shower stool with armrest); 4,0 kg (shower chair with backrest); 4,8 kg (shower chair complete)

Colour (other)

Colour (other)

White
