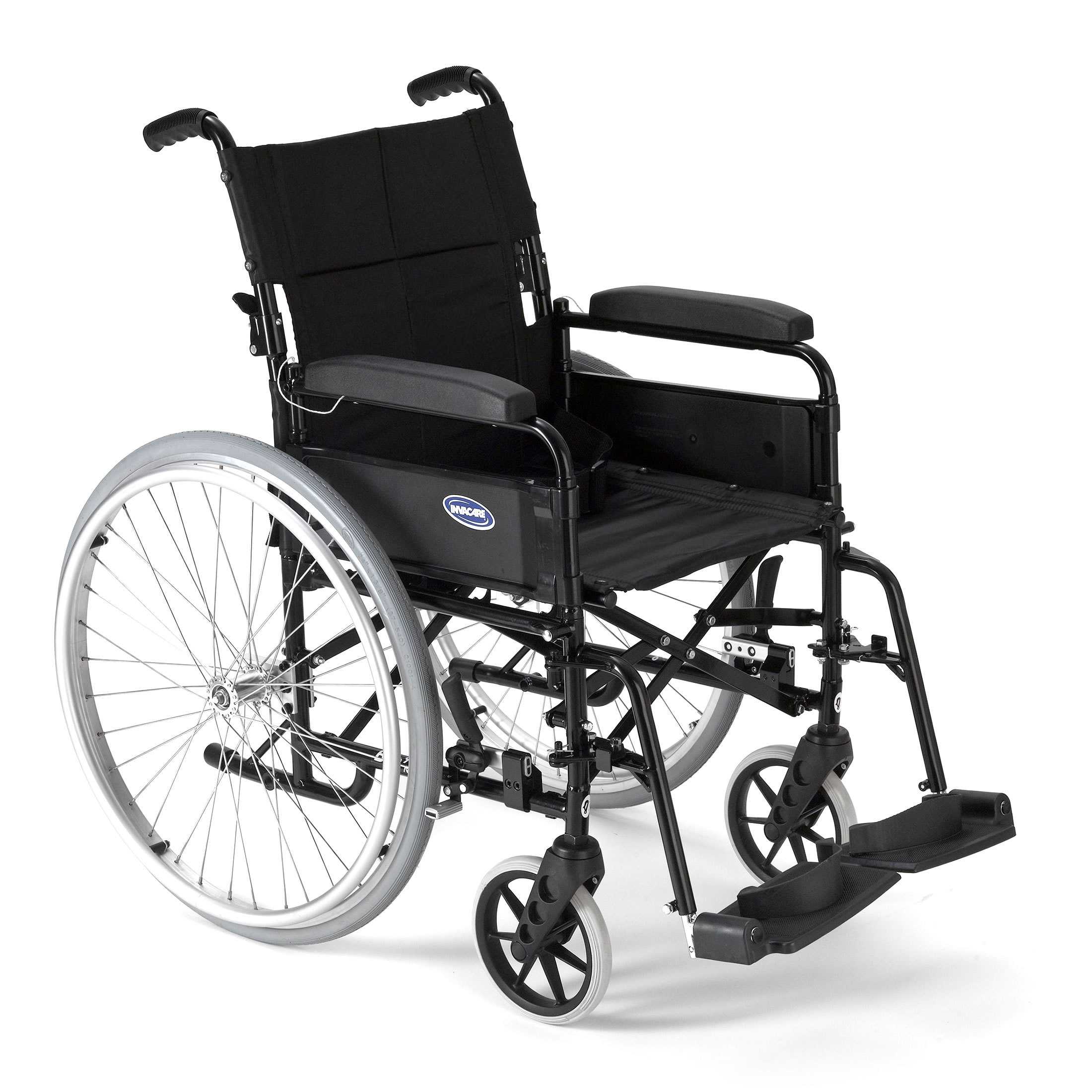

Invacare Ben 9 NG manual wheelchair

The Invacare Ben NG is one of the most popular short term use manual wheelchairs within the market. Well known for its simple and easy to use functionality and is considered one of the most durable and reliable frame designs similar to that of its highly respected predecessor the Invacare Ben 9.

Designed to allow for quick and easy propulsion change between transit and self-propel propulsion, the Invacare Ben NG is a great solution for individuals as their independence levels alter and for refurbishment and re-issuing this manual wheelchair.

Available in the standard Ben NG specification and a heavy-duty specification with a reinforced frame, the Invacare Ben NG caters for most individuals who require a manual wheelchair for short term use.

Ideal for storage and transportation with a compact foldable chassis, folding backposts and swing away legrests, ensuring the Invacare Ben NG supports individuals’ everyday activities and lifestyles.

  • Simple and easy propulsion change
  • Available in a standard specification and heavy-duty specification
  • Removable armrests and swing away legrests
  • Compact frame with folding backposts and a folding chassis
  • Built for durability
Modular rear wheel position
Modular rear wheel position

Thanks to the removable
rear wheel support you
can transform your Ben
9NG self-propulsion into
a transit version and vice
versa.

Compactness
Compactness

The lightweight frame,
backrest and legrests fold
away easily to make the
chair very compact for
storage or transportation.

Heavy Duty version
Heavy Duty version

A heavy duty version is
available, ideal for users
weighing up to 160 kg
user, in both selfpropulsion
and transit
versions. Available in

Find a retailer

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Leave us a message

Please complete the details below to contact us.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Seat width

Seat width

380 - 455mm / 510 - 610 mm**

Seat depth

Seat depth

405 / 430 or 430 / 455 mm**

Seat angle

Seat angle

Seat height

Seat height

485 mm

Backrest angle

Backrest angle

Backrest height

Backrest height

420 mm

Length of footrests

Length of footrests

330 - 430 mm

Armrest height

Armrest height

220 mm

Driving unit width

Driving unit width

Seat width + 200 / 130 mm*

Total width folded

Total width folded

265 mm - 370 mm

Total height folded

Total height folded

680 mm - 875 mm

Total length

Total length

1040 - 910 mm*

Total length without footrests

Total length without footrests

780 / 670 mm*

Total height

Total height

965 / 720 mm (folded)

Max. safe slope

Max. safe slope

11.5°

Turning diameter

Turning diameter

965 / 720 mm (folded)

Max. User weight

Max. User weight

127 / 160 kg**

Total weight

Total weight

19.3 / 17* / 22 kg**

Frame colour

Frame colour

Black

Colour (other)

Colour (other)

Black nylon

Colour (other)

Comment

* Transit version ** Heavy Duty version
